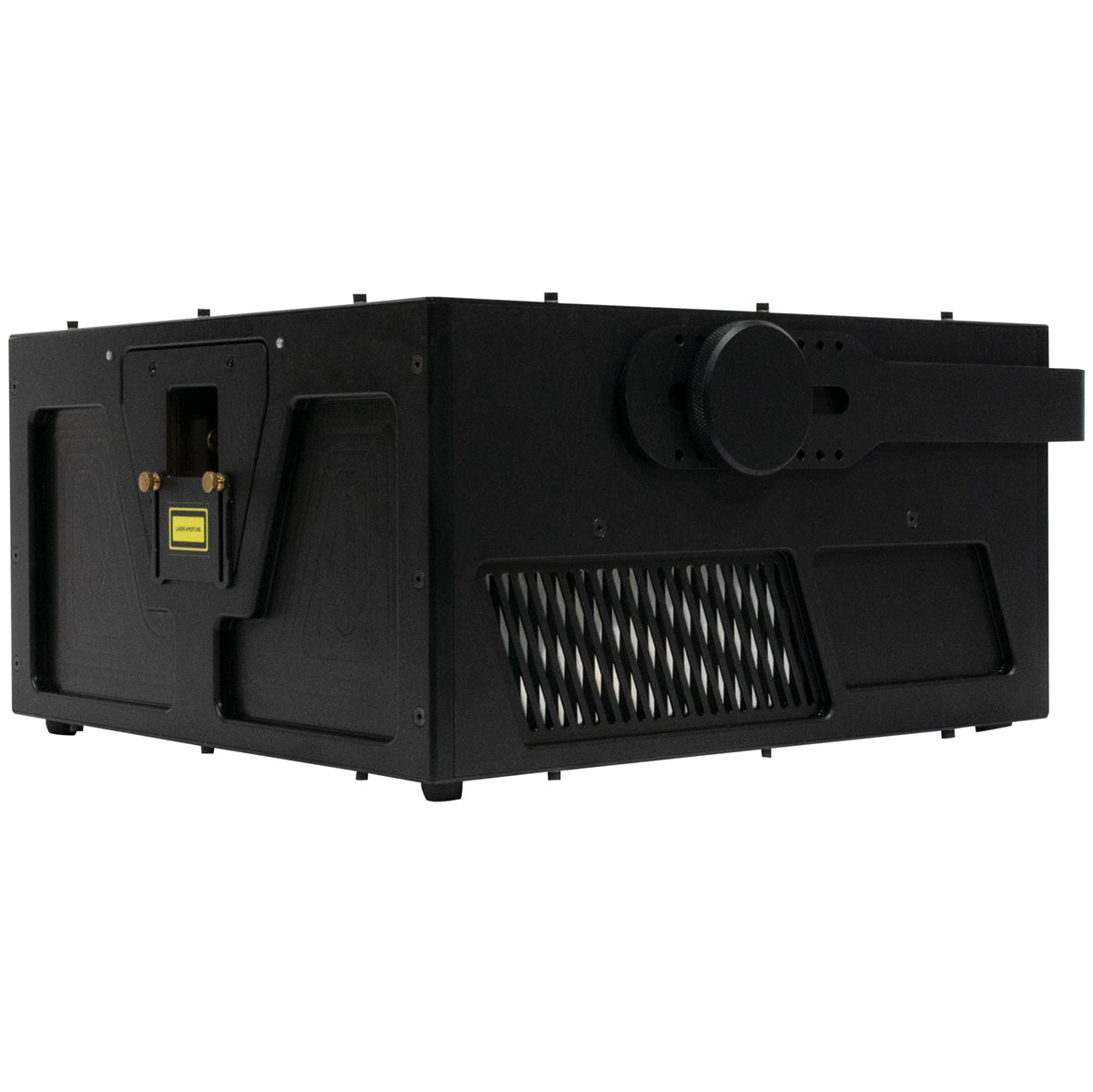

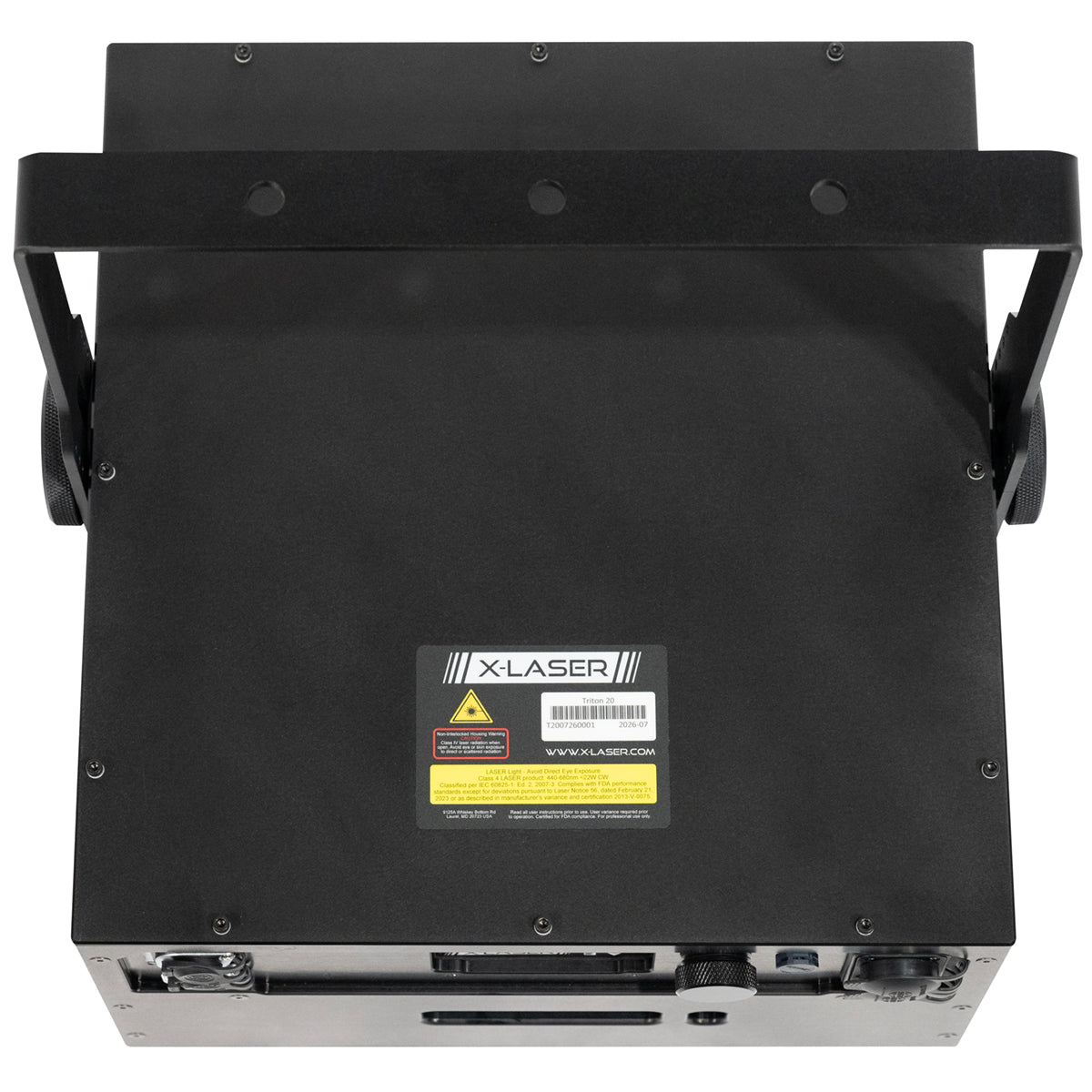

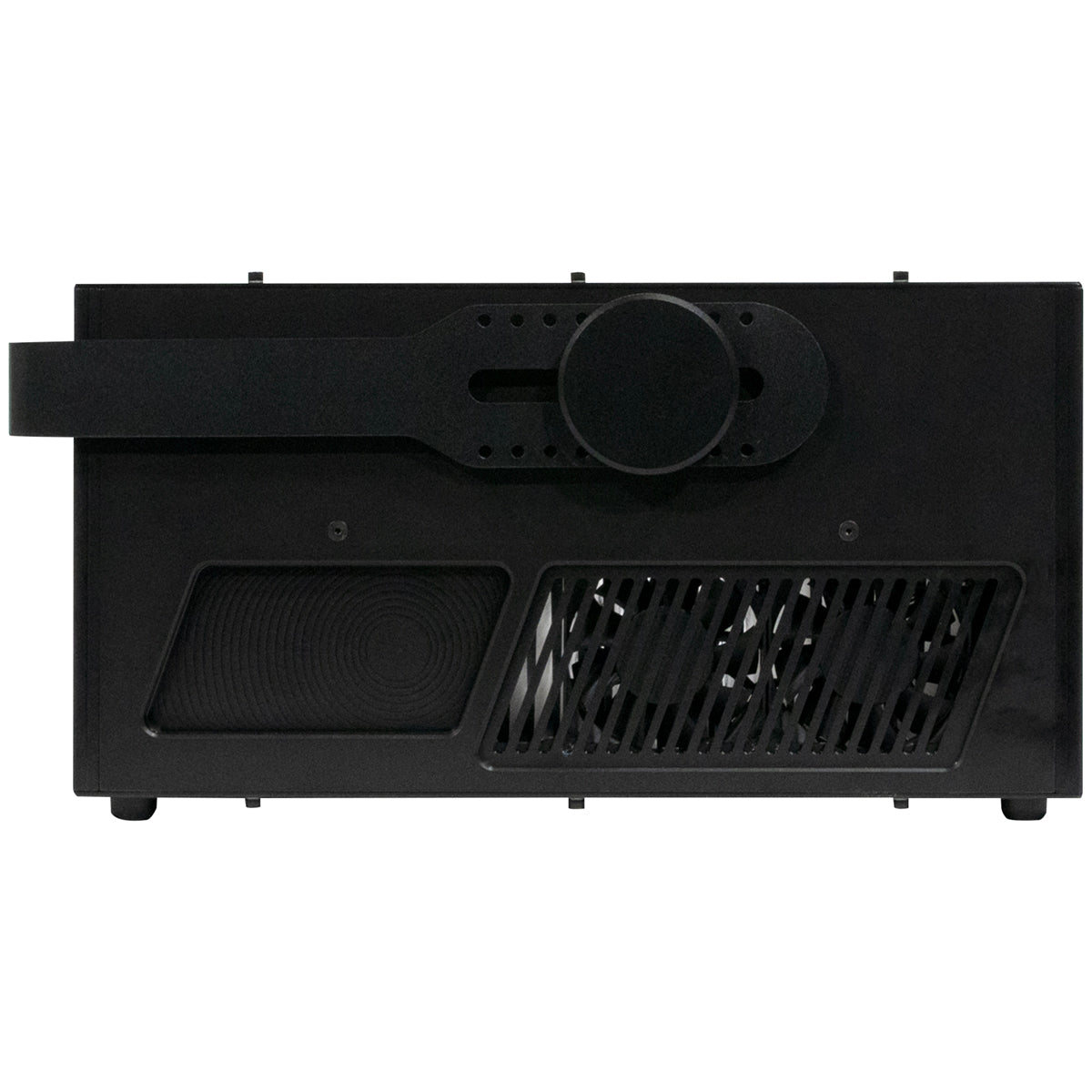

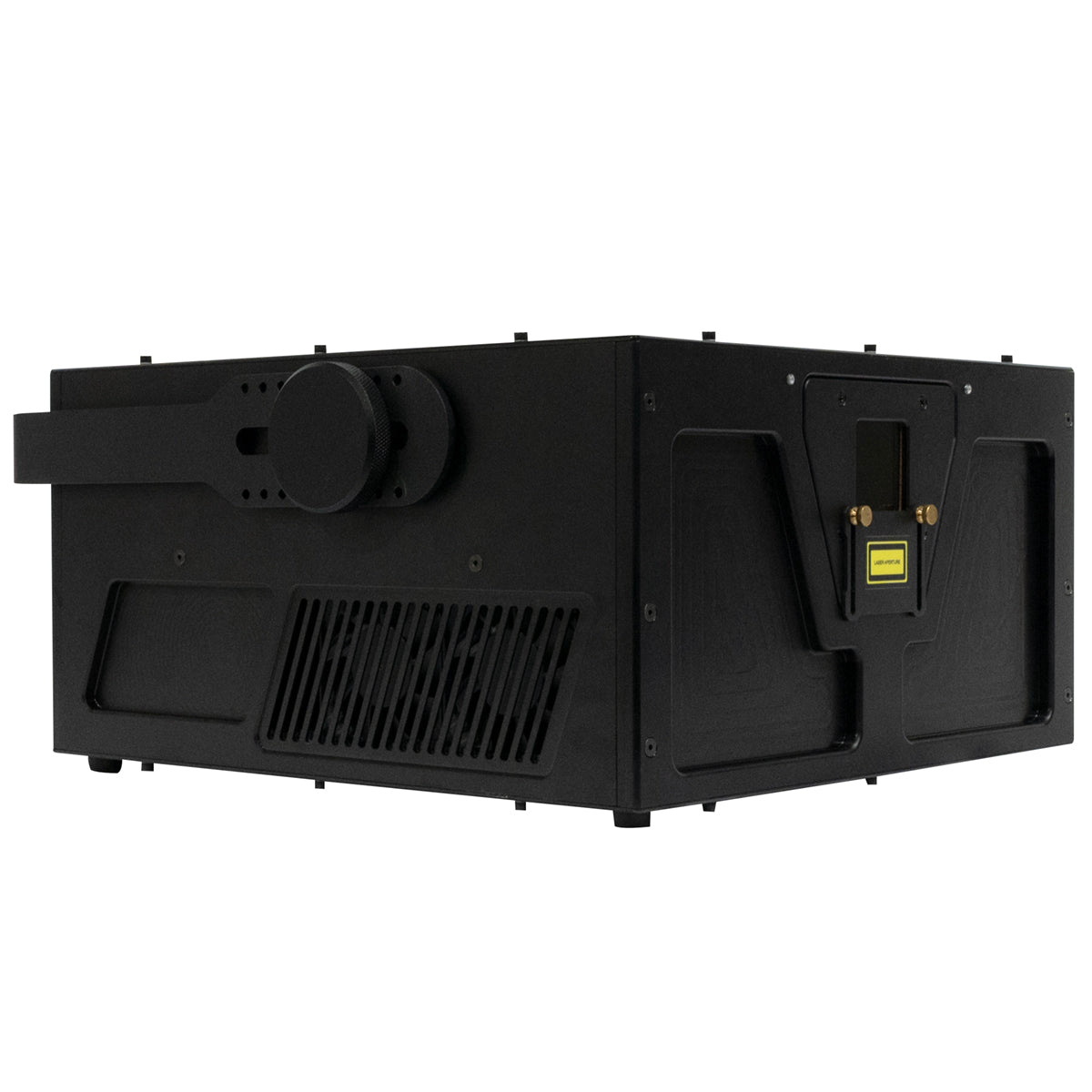

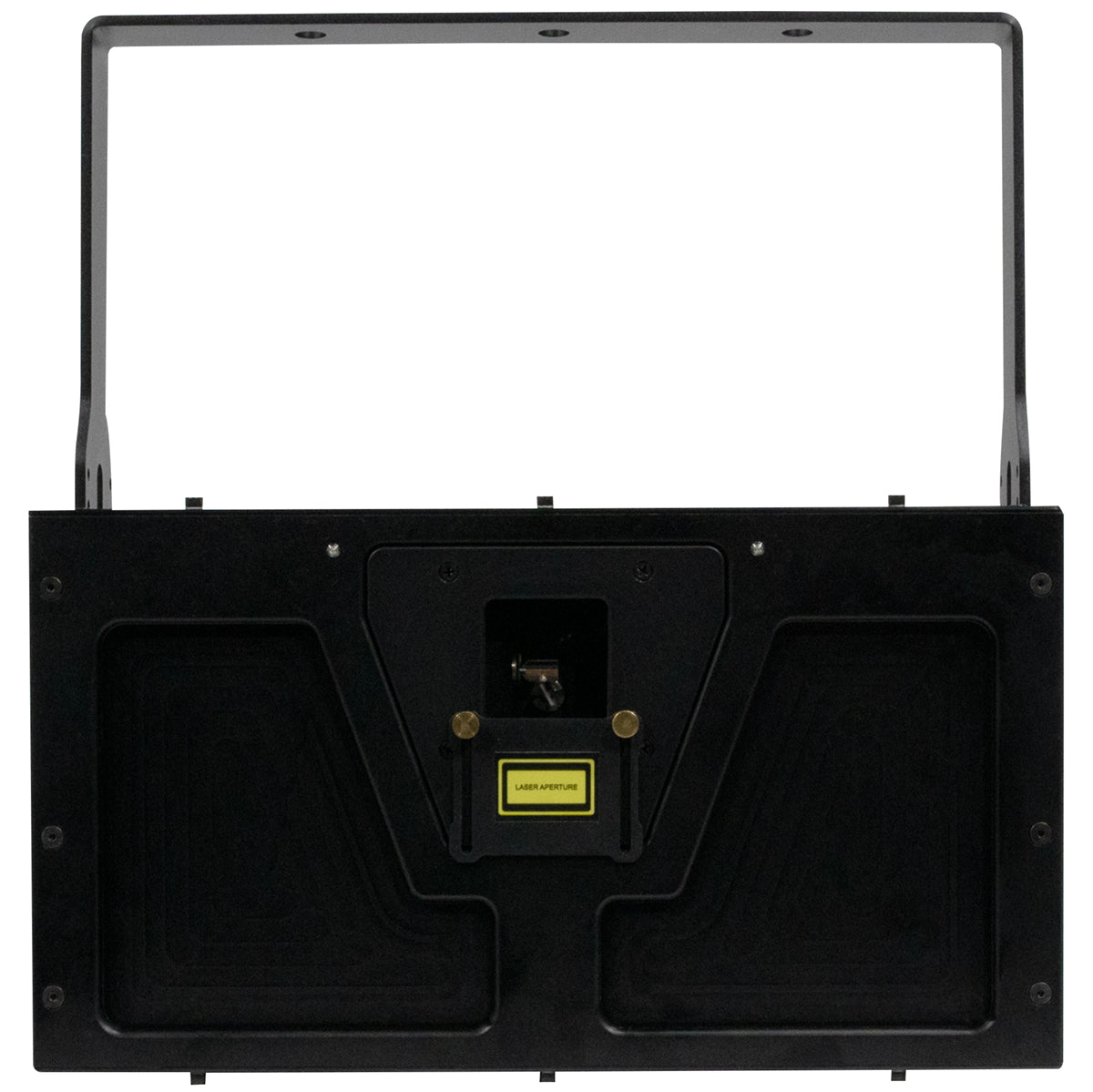

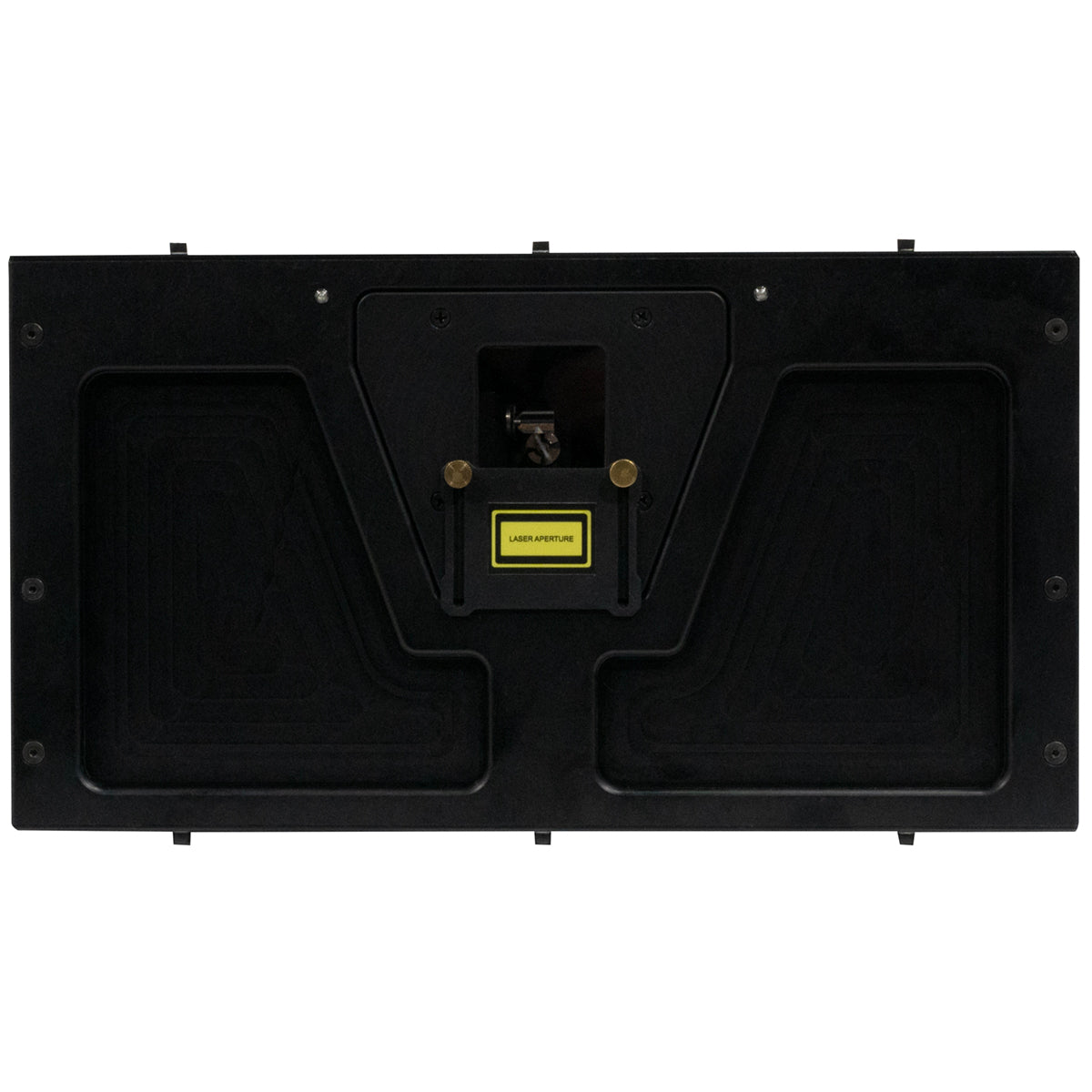

Triton T-10
Features
Certified to the world’s toughest quality standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and IEC 60825-1
Road ready, road rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.
Direct compatibility with lighting consoles
With X-Laser’s Mercury Laser Control System, this projector functions just like any other moving-head fixture when connected to a pro console.
Designer-friendly and tour-ready, the X-Laser Triton T-10 works seamlessly with X-Laser’s Mercury Laser Control System, supporting familiar protocols like sACN and Art-Net, so programming feels just like any top-brand moving light. Its 0.1º–45º zoom, instant zoom changes, and digital gobo effects give creative flexibility in a lightweight, road-ready package.
Proven on high-profile productions such as Coldplay’s Music of the Spheres Tour, the Triton T-10 from X-Laser combines accessibility, professional-grade performance, and rugged IP65 durability—making it an ideal choice for lighting designers and production teams looking for a compact, reliable IP65 laser fixture.
Specifications
- Source
- 10W Balanced RGB Laser Engine
- Direct-Injection Diode Modules
- Red: 638 nm
- Green: 520 nm
- Blue: 450 nm
- 3.2W red, 3.2W green, 4.0W blue
- Photometrics / Optics
- High-Speed Closed-Loop Galvanometers
- Max Scan Angle 45º
- 30,000 PPS Scanner Speed at 8º Scan Angle
- Beam Divergence: <1.2 mRad
- Fully Sealed Optical Deck
- Electrical / Thermal
- 90-246V AC Auto-Switching
- Power draw: 300W peak
- Neutrik PowerCON TRUE1
- Operating range: 0º F to 105º F (-17º C to 41º C)
- Other
- FDA / IEC Hazard Class IV
- U.S. FDA Variance Required

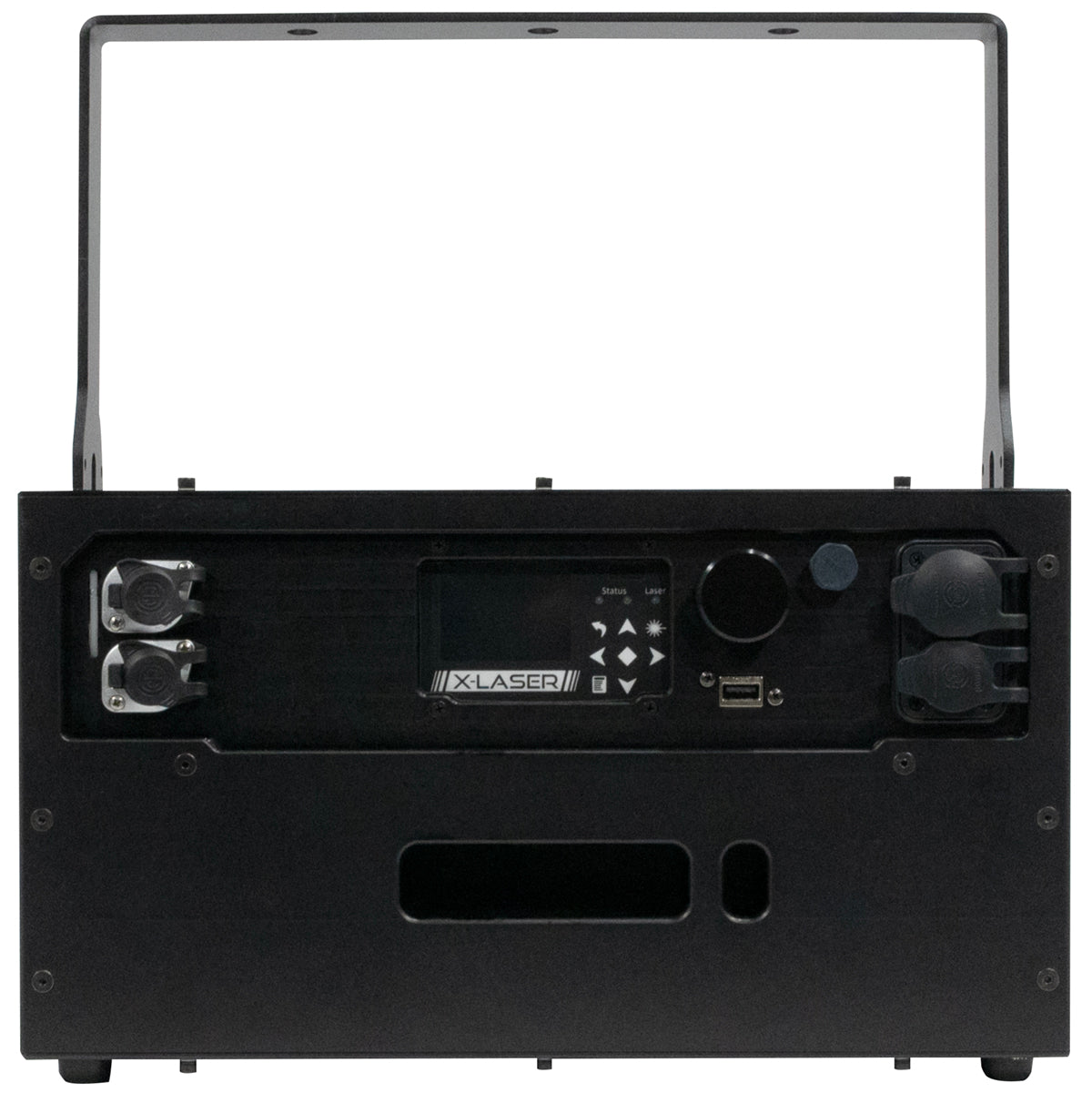

- Control and Interface

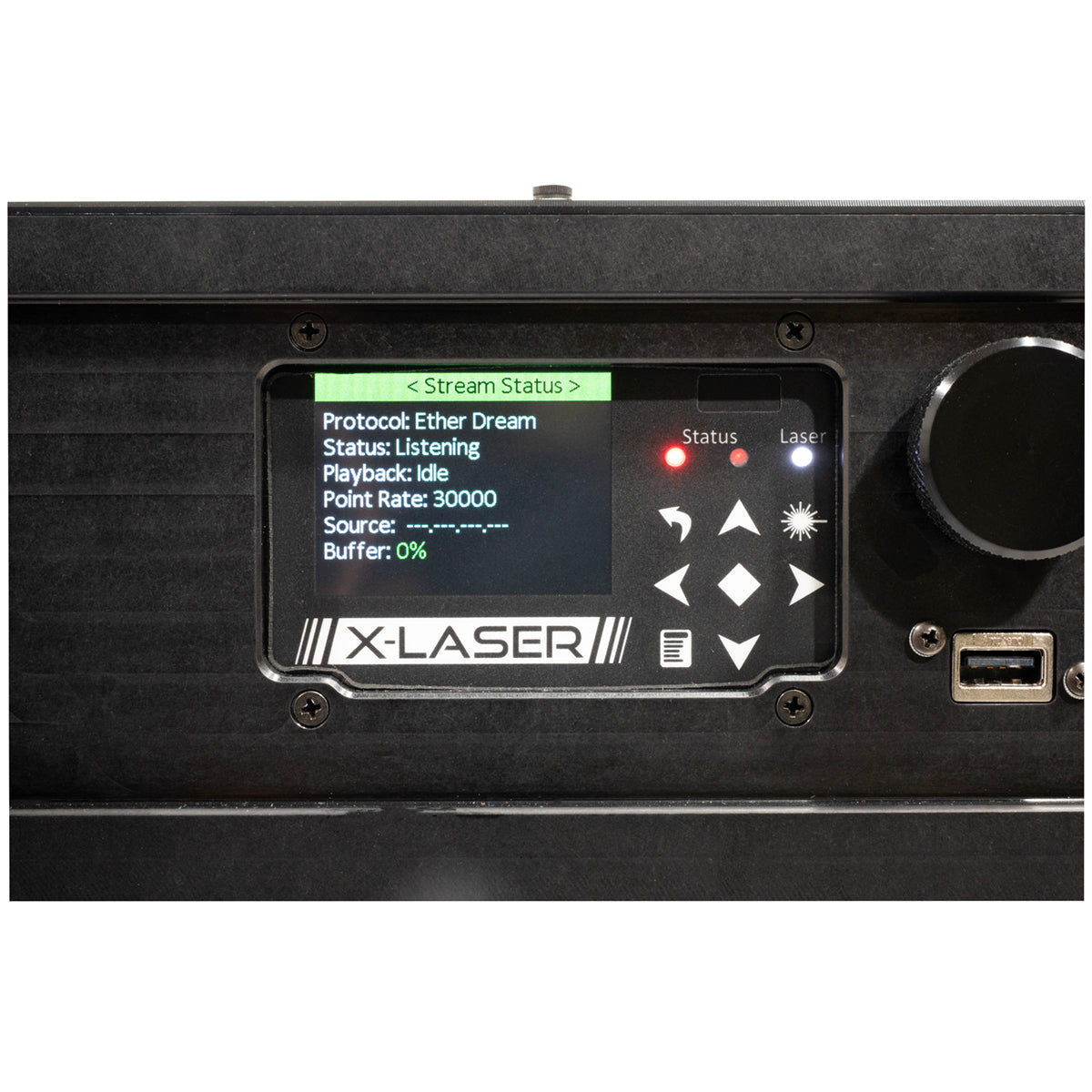

- X-Laser Mercury integrated, 2.25" LCD
- Fixture profiles for all major console brands
- EtherStop combined remote stop and control data in / thru
- PowerCON TRUE1 in / thru
- RJ45 (sACN, etc.) in / thru
- Color and Effects
- Additive RGB Analog Color Mixing
- 1,000+ Colors
- 50 Color Macros
- 11 Digital Prisms
- 450+ “Gobos” / Digital Patterns Built-In
- 60 Motion Macros with variable speed and amplitude
- Dimensions / Physical / Materials
- 15.6” L x 14.7” W x 8.0” H (13.8” H w/ yoke up)
- (396 mm x 373 mm x 203 mm; 351 mm yoke up)
- Weight: 45 lbs (20.4 kg)
- Rugged 6061 Aluminum Enclosure
- IP Rating: IP65
Downloads
| Filename | Document type | File type |
|---|---|---|
| X-Laser Triton T-10 Specifications | Specification Sheet |
