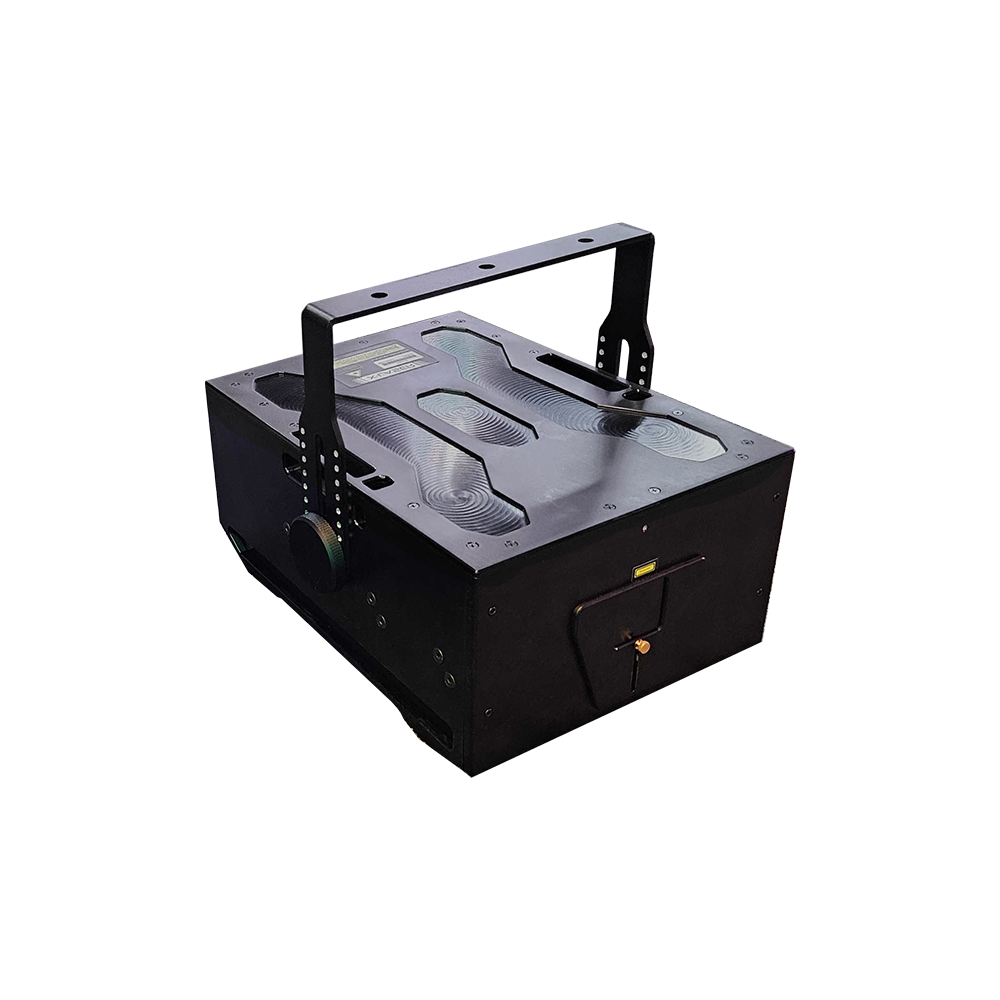

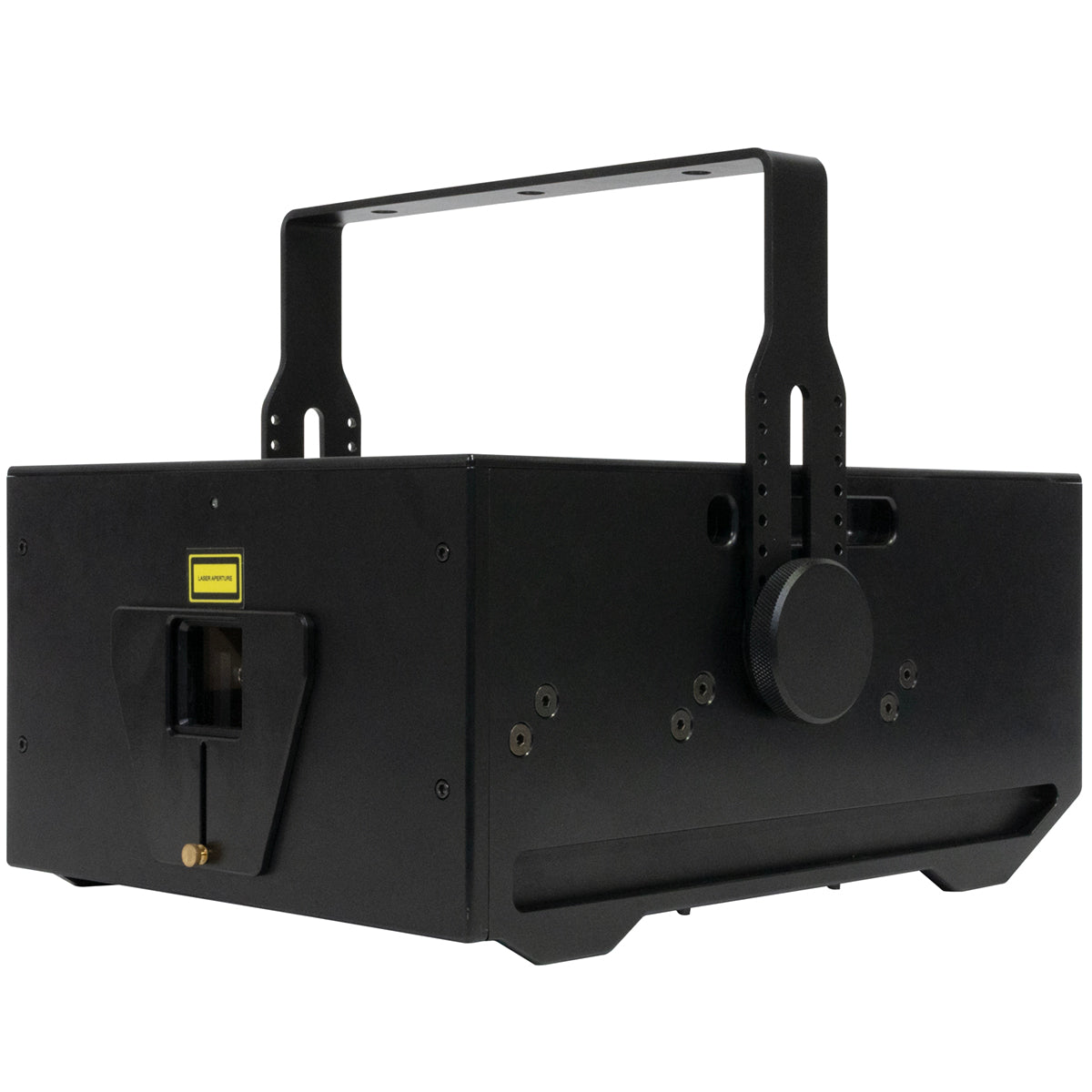

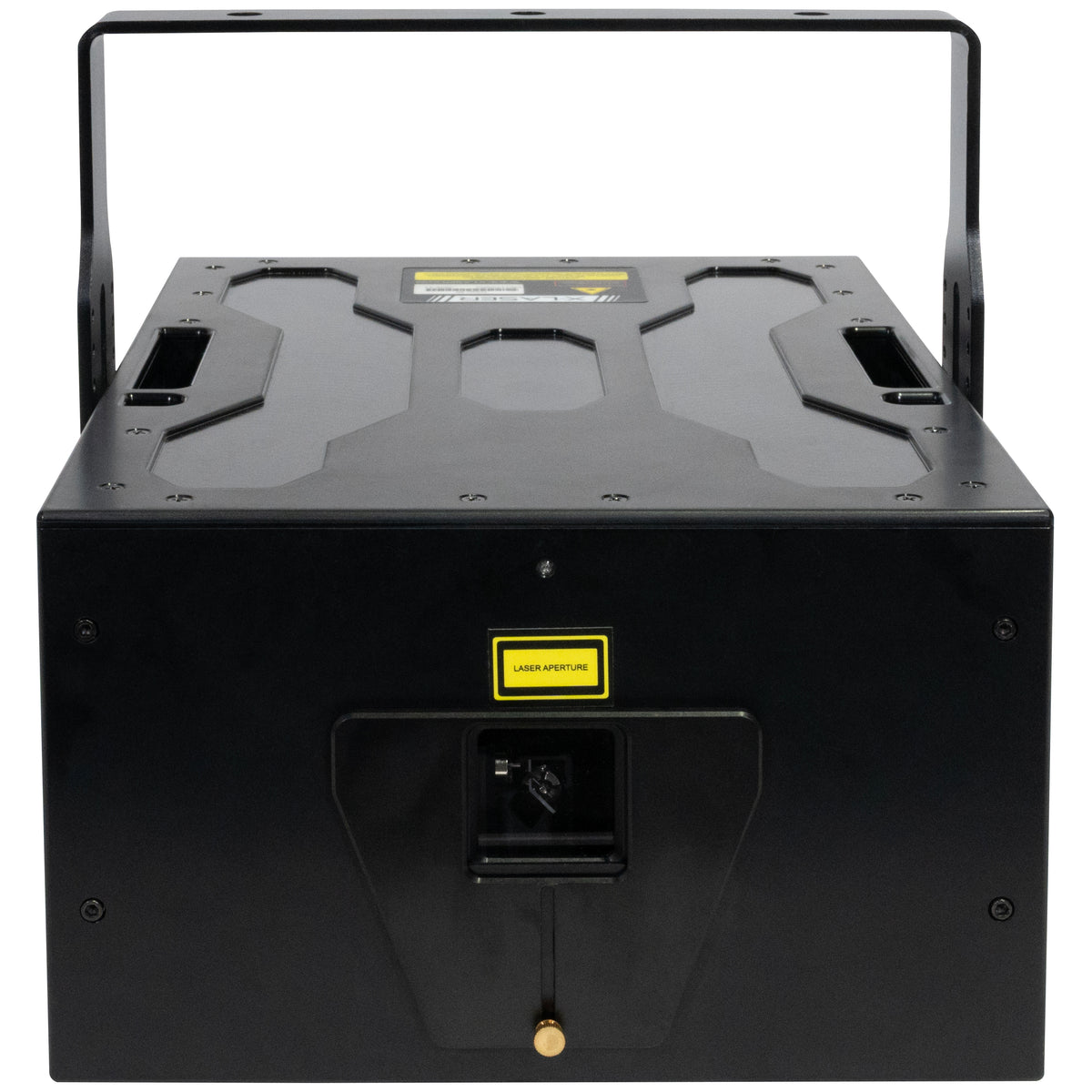

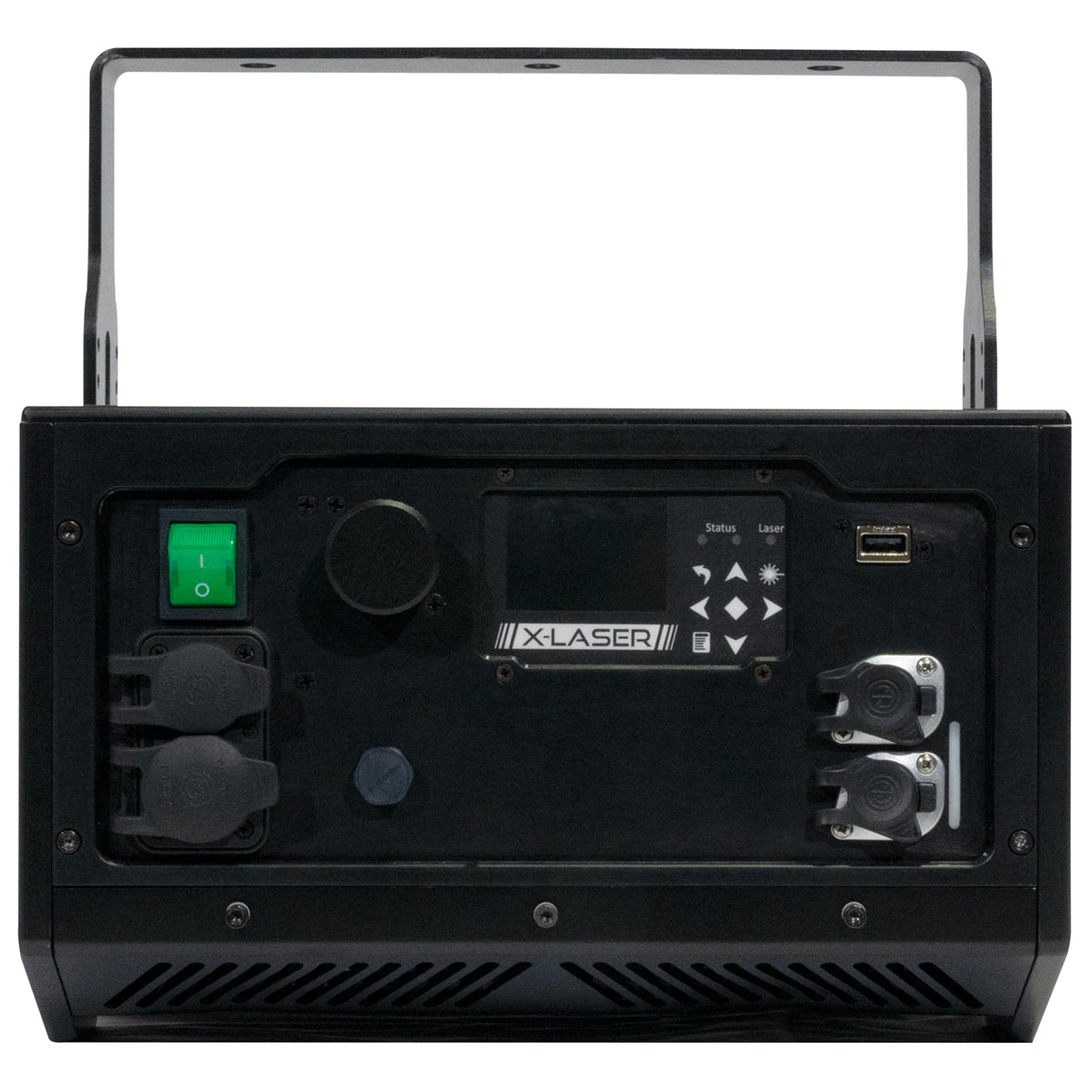

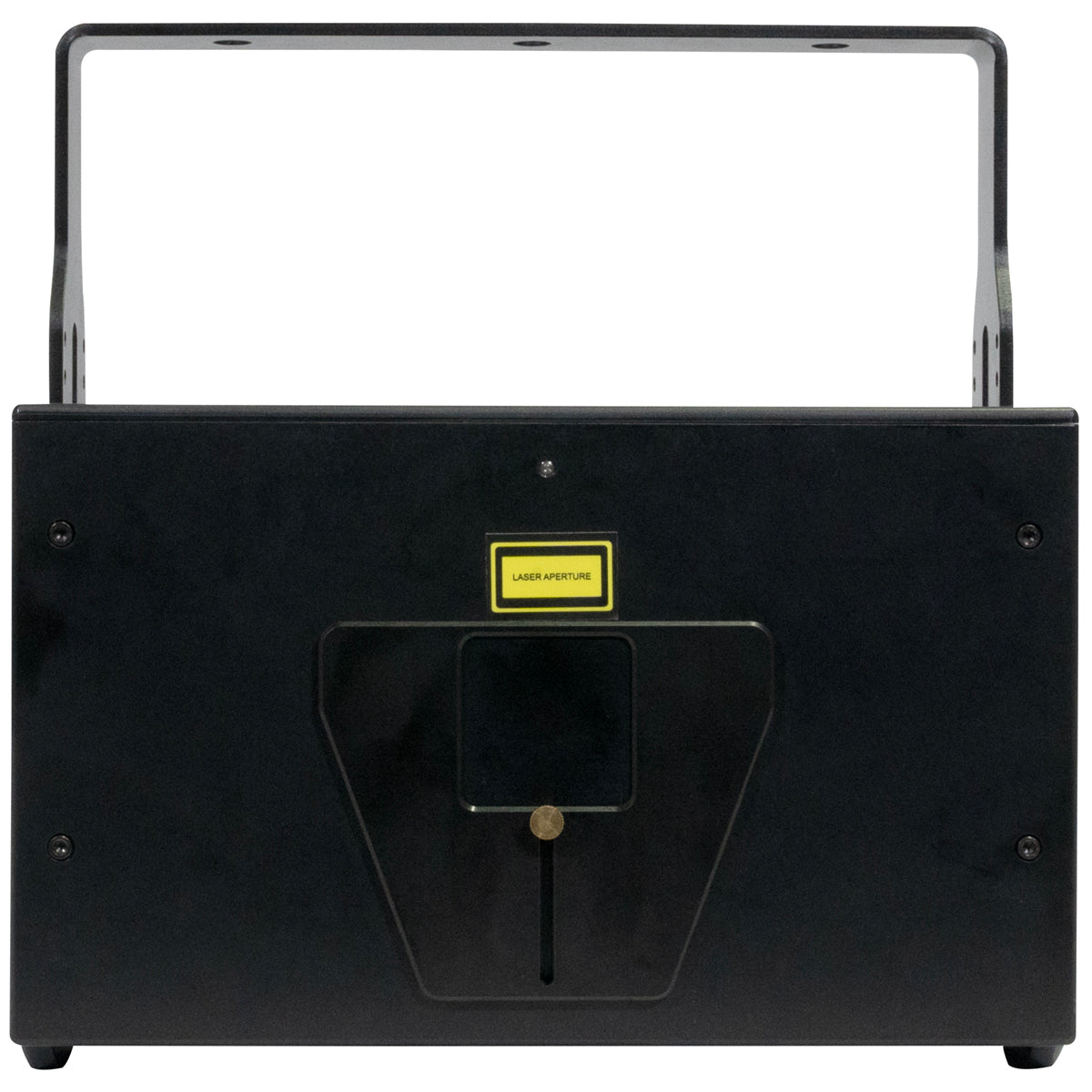

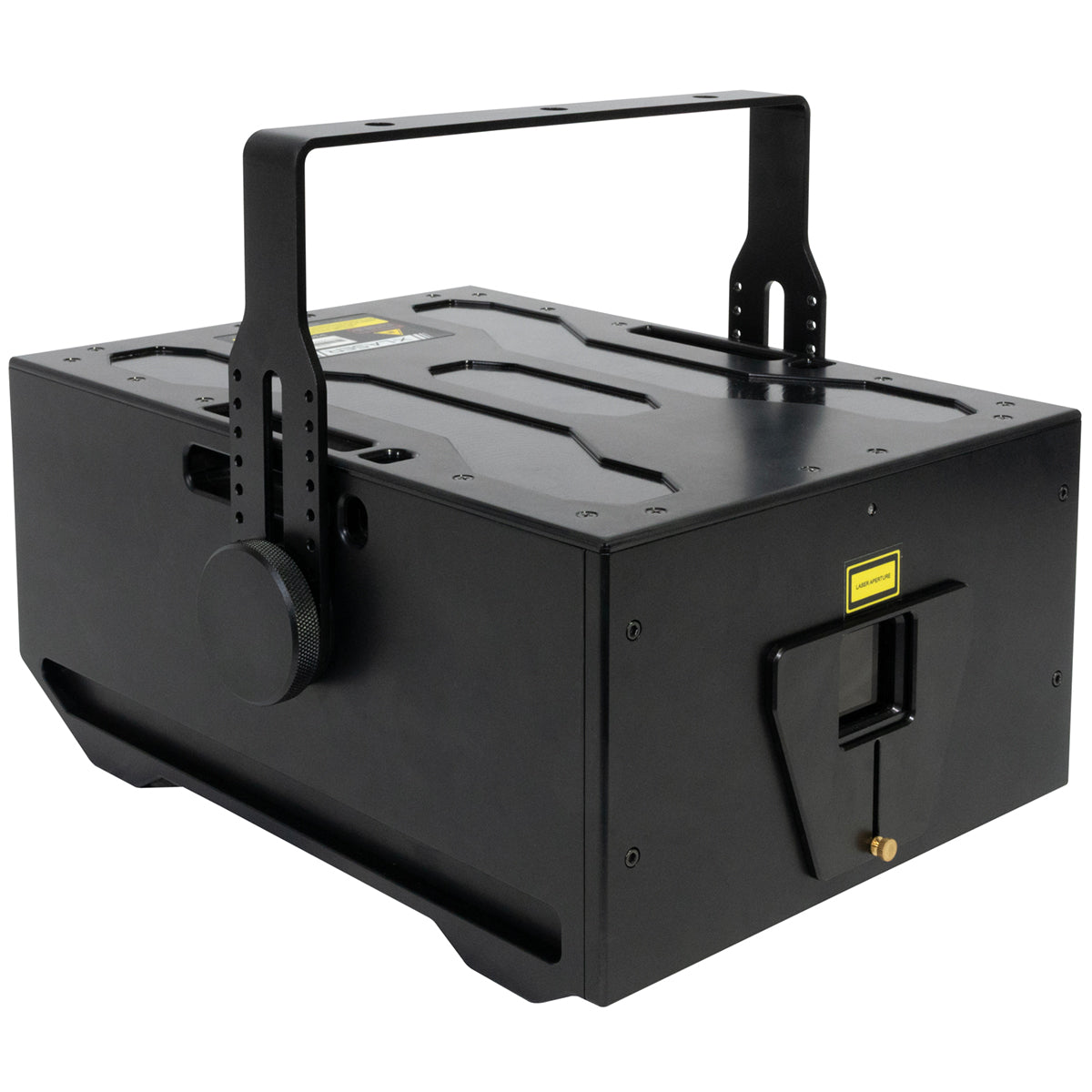

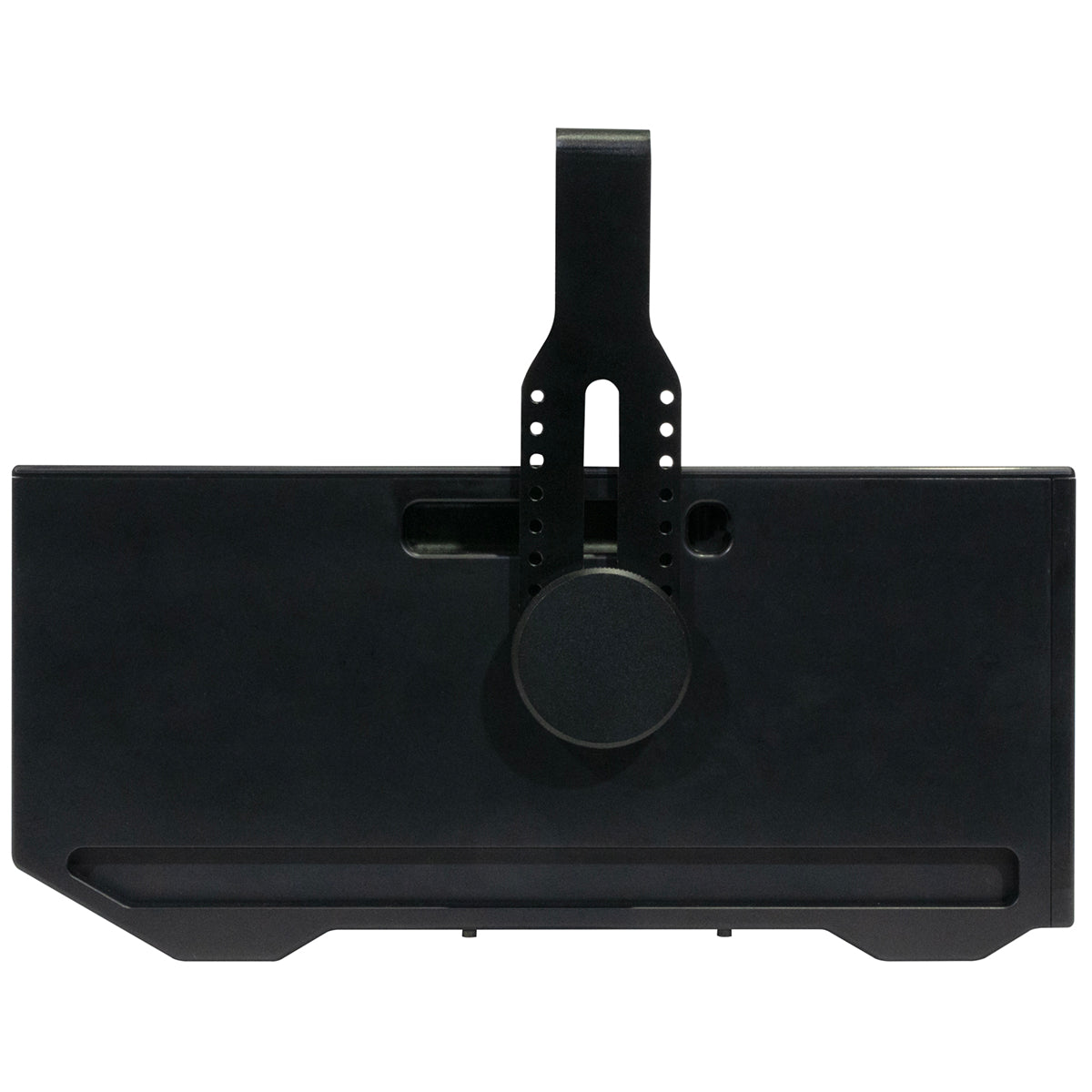

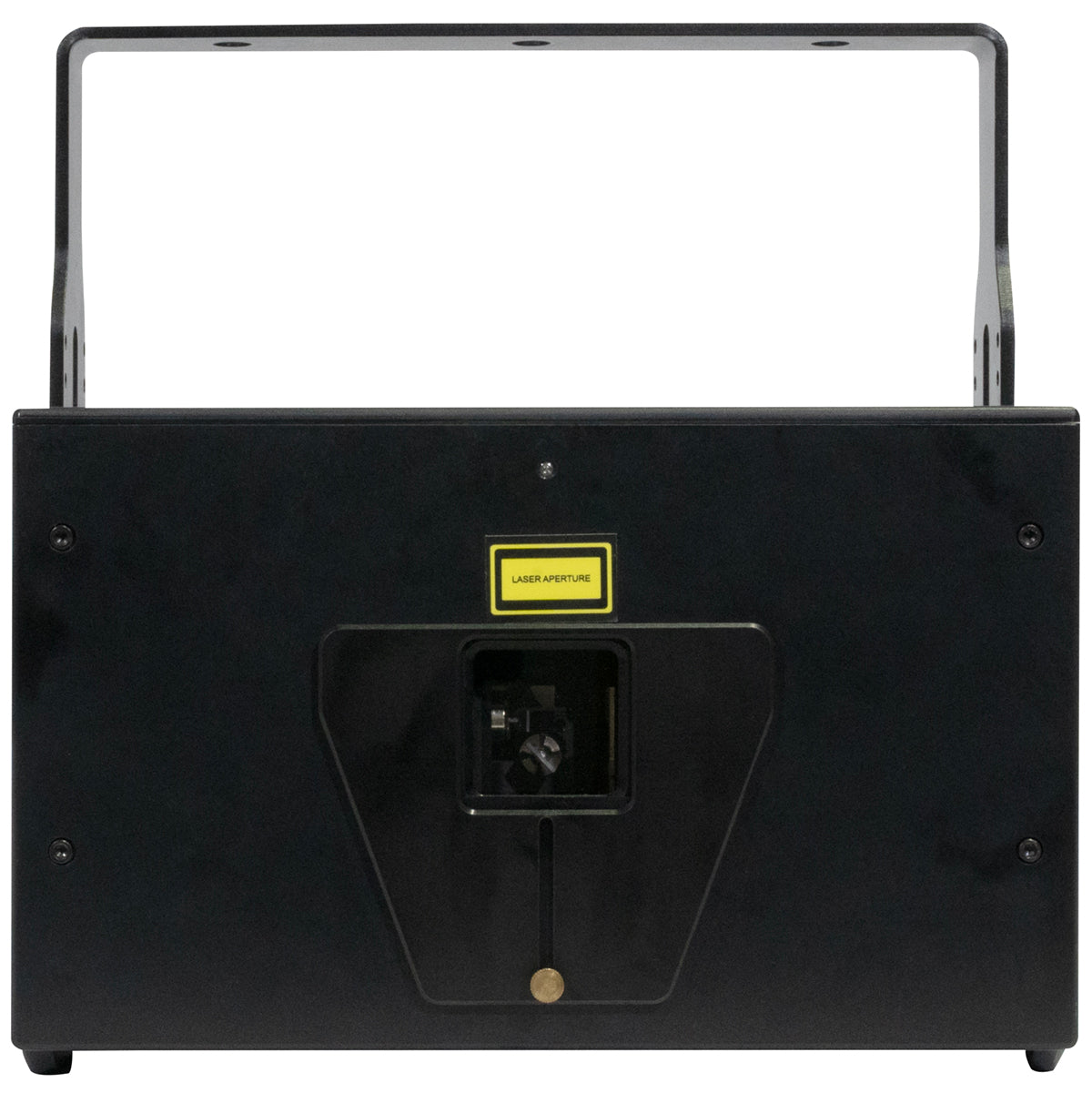

Triton T-40


Ready to empower world-class effects and deliver unrivaled experiences, the Triton T-40 from X-Laser is quite simply our best and brightest yet.

Features

Certified to the world’s toughest quality standards

All X-Laser projectors are all certified to comply with U.S. FDA standards and IEC 60825-1

Road ready, road rugged

With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.

Direct compatibility with lighting consoles

With X-Laser’s Mercury Laser Control System, this projector functions just like any other moving-head fixture when connected to a pro console.

Engineered with IP65 durability for outdoor weather resistance, this fixture has already been tested and proven in some of the production world’s toughest environments. X-Laser overbuilt the Triton T-40 to withstand whatever challenges the world’s top production designers can throw its way.

The Triton T-40 features full RGB direct-injection laser diode modules, tuned for ideal balance to color mix on par with—or better than—today’s top-brand “traditional” fixtures. Creating looks with rich berry, vivid orange or intense lime colors is no problem for Triton. Designers also benefit from the creative power and flexibility of X-Laser’s Mercury Laser Control System, which enables programming directly from the lighting console using the same show file and common signal protocols such as sACN and Art-Net configuration capability. For even more creative flexibility, the Triton T-40 can be specified for audience scanning and offers the option of legacy laser control firmware integrated, too.

The Triton T-40 empowers designers to give their shows laser-specific creative advantages such as an impressive zoom range of 0.1º to 45º plus instantaneous zoom and digital “gobo” changes, making it an awesomely punchy complementary effect fixture for all sorts of venues and genres. And because the show must go on, the Triton T-40’s easy-to-understand live diagnostic 2.25” LCD readout and easy-access service “hood” save techs valuable time should the need to troubleshoot on the road ever arise.

Each Triton T-40 fixture weighs 50lbs, which is impressive for its power and robustness. This laser ships individually in a standard plastic Pelican-style road case, and even when encased, it’s light and compact enough to be a checked bag.

Satisfy stagehands, delight designers and amaze audiences with the Triton T-40.

Specifications

  • Source
    • 40W Balanced RGB Laser Engine
    • Direct-Injection Diode Modules
    • Red: 638 nm
    • Green: 520 nm
    • Blue: 450 nm
    • 11W red, 14W green, 16W blue
  • Photometrics / Optics
    • High-Speed Closed-Loop Galvanometers
    • Max Scan Angle 45º
    • 30,000 PPS Scanner Speed at 8º Scan Angle
    • Beam Divergence: <1.4 mRad
    • Fully Sealed Optical Deck
  • Electrical / Thermal
    • 90-246V AC Auto-Switching
    • Power draw: 950W peak
    • Neutrik PowerCON TRUE1
    • Operating range: 0º F to 105º F (-17º C to 41º C)
  • Other
    • FDA / IEC Hazard Class IV
    • U.S. FDA Variance Required
  • Control and Interface
    • X-Laser Mercury integrated, 2.25" LCD
    • Fixture profiles for all major console brands
    • EtherStop combined remote stop and control data in / thru
    • PowerCON TRUE1 in / thru
    • RJ45 (sACN, etc.) in / thru
  • Color and Effects
    • Additive RGB Analog Color Mixing
    • 1,000+ Colors
    • 50 Color Macros
    • 11 Digital Prisms
    • 450+ “Gobos” / Digital Patterns Built-In
    • 60 Motion Macros with variable speed and amplitude
  • Dimensions / Physical / Materials
    • 16.7” L x 12.0” W x 8.0” H (13.0” H w/ yoke up)
    • (424 mm x 305 mm x 203 mm; 330 mm yoke up)
    • Weight: 50 lbs (22.7 kg)
    • Rugged 6061 Aluminum Enclosure
    • IP Rating: IP65

Downloads

Filename Document type File type
X-Laser Triton T-40 Specifications Specification Sheet PDF
Mercury Profile - Martin Lightjockey Fixture Profile ZIP
Mercury Profile - Chroma-Q Vista 3 Fixture Profile ZIP
Mercury Profile - ETC Eos Fixture Profile ZIP
Mercury Profile - ADJ MyDMX Fixture Profile ZIP
Mercury Profile - Elation CompuShow Fixture Profile ZIP
Mercury Profile - Hog4 Fixture Profile ZIP
Mercury Profile - ChamSys Fixture Profile ZIP
Mercury Profile - Obsidian Onyx Fixture Profile HTM
Mercury Profile - grand MA 3/GDTF Fixture Profile GDTF
Mercury Profile - grand MA 2 Fixture Profile ZIP
Mercury Profile - Avolites Fixture Profile ZIP
Mercury Software ZIP
XLERATE Software ZIP
EtherStop quick setup guide User Guide PDF
