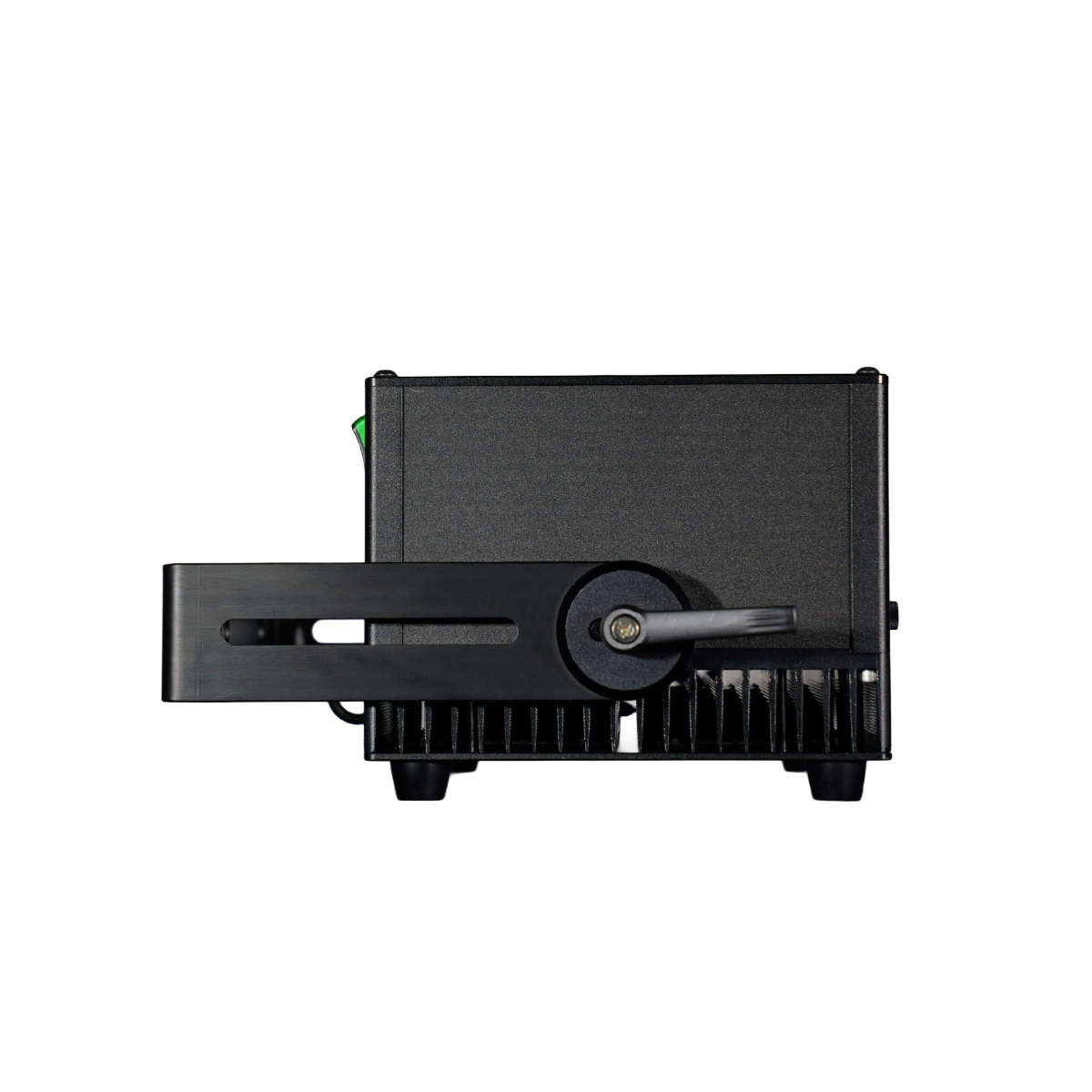

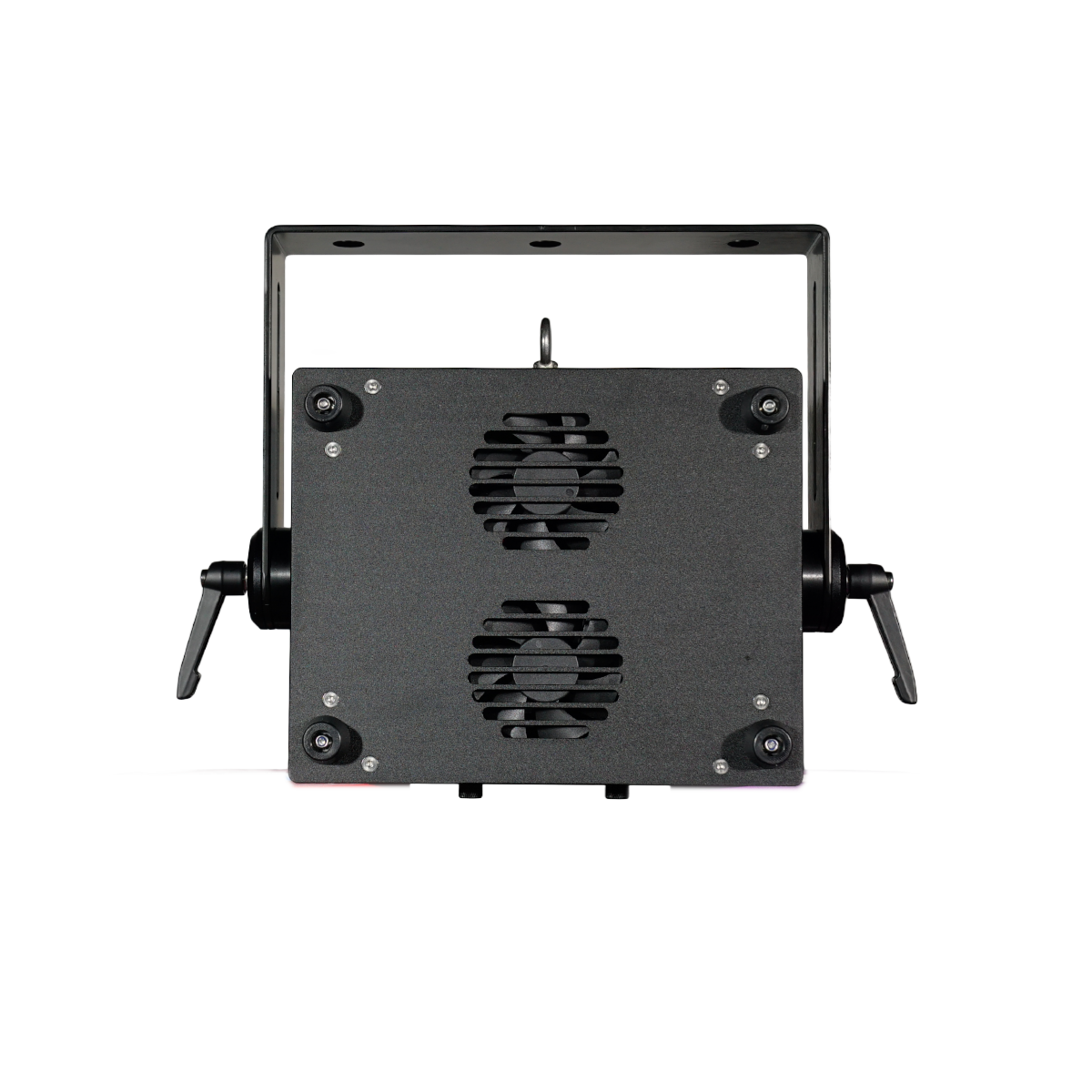

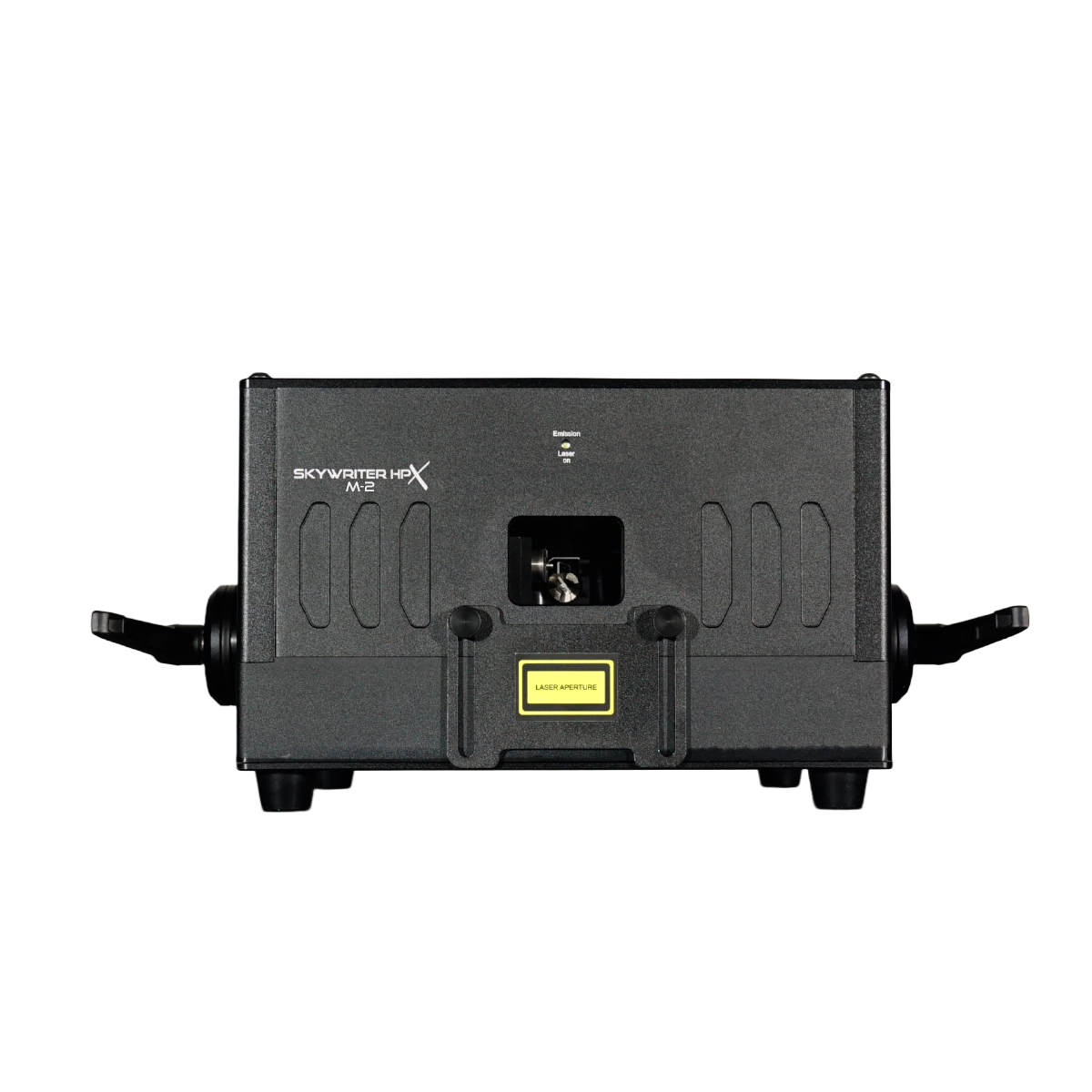

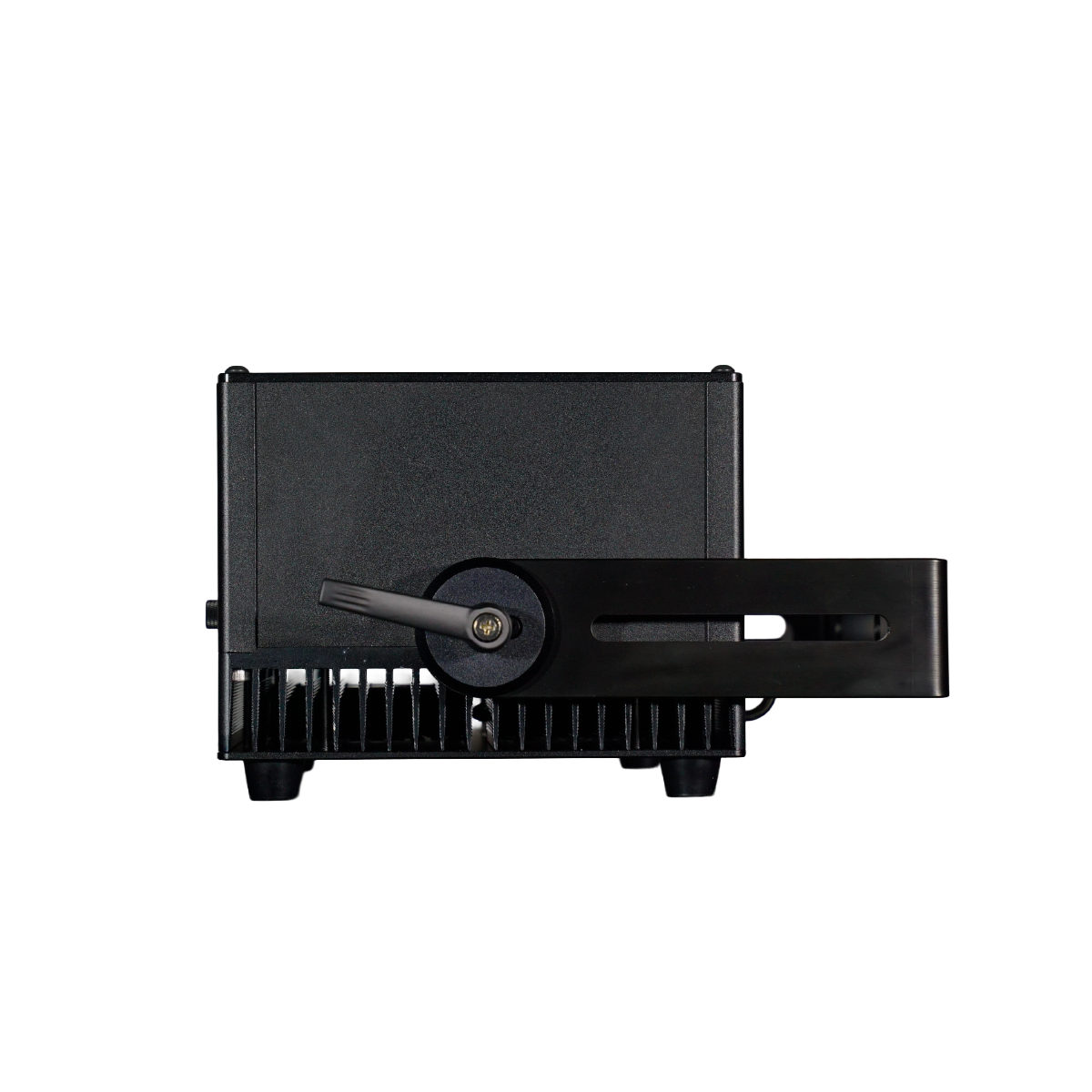

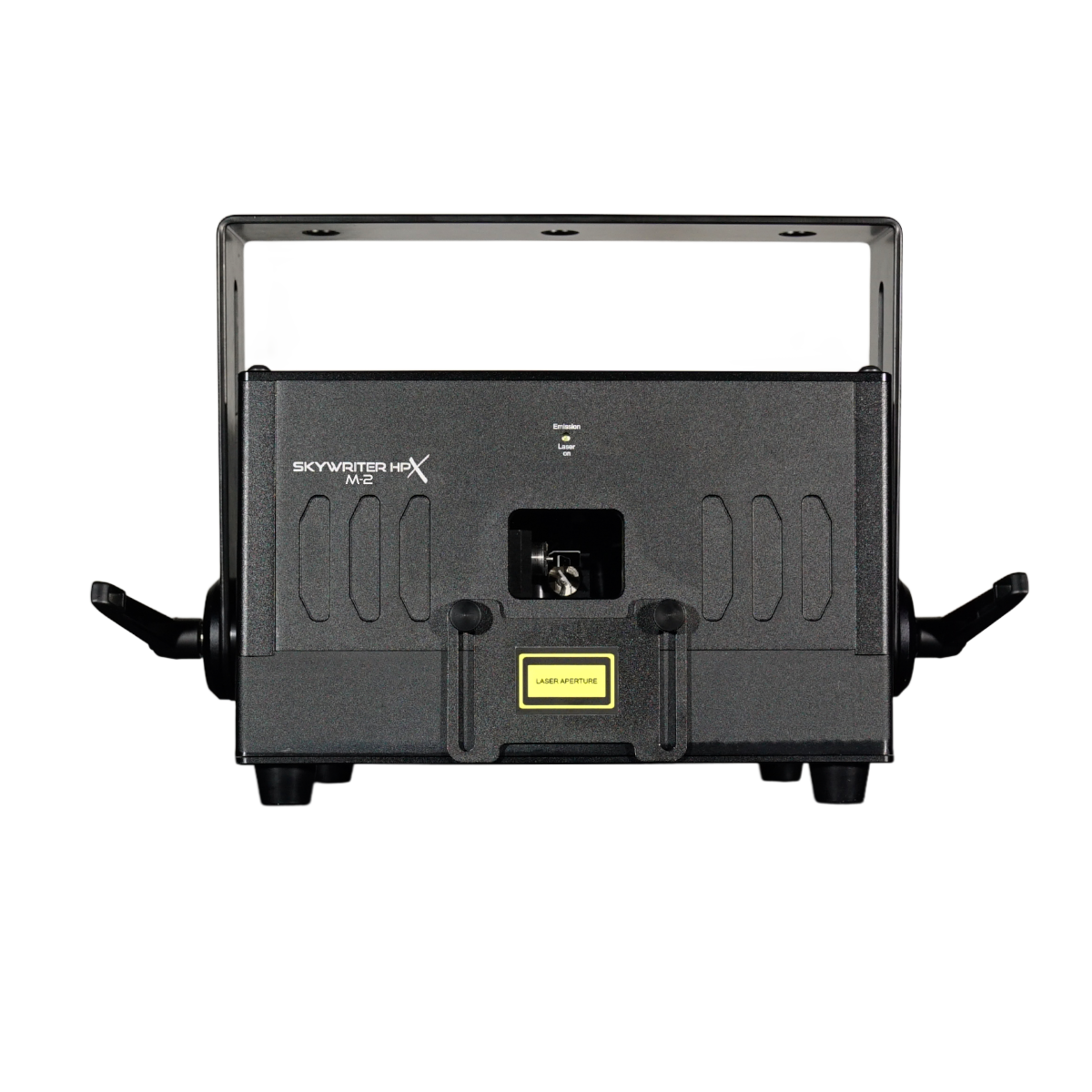

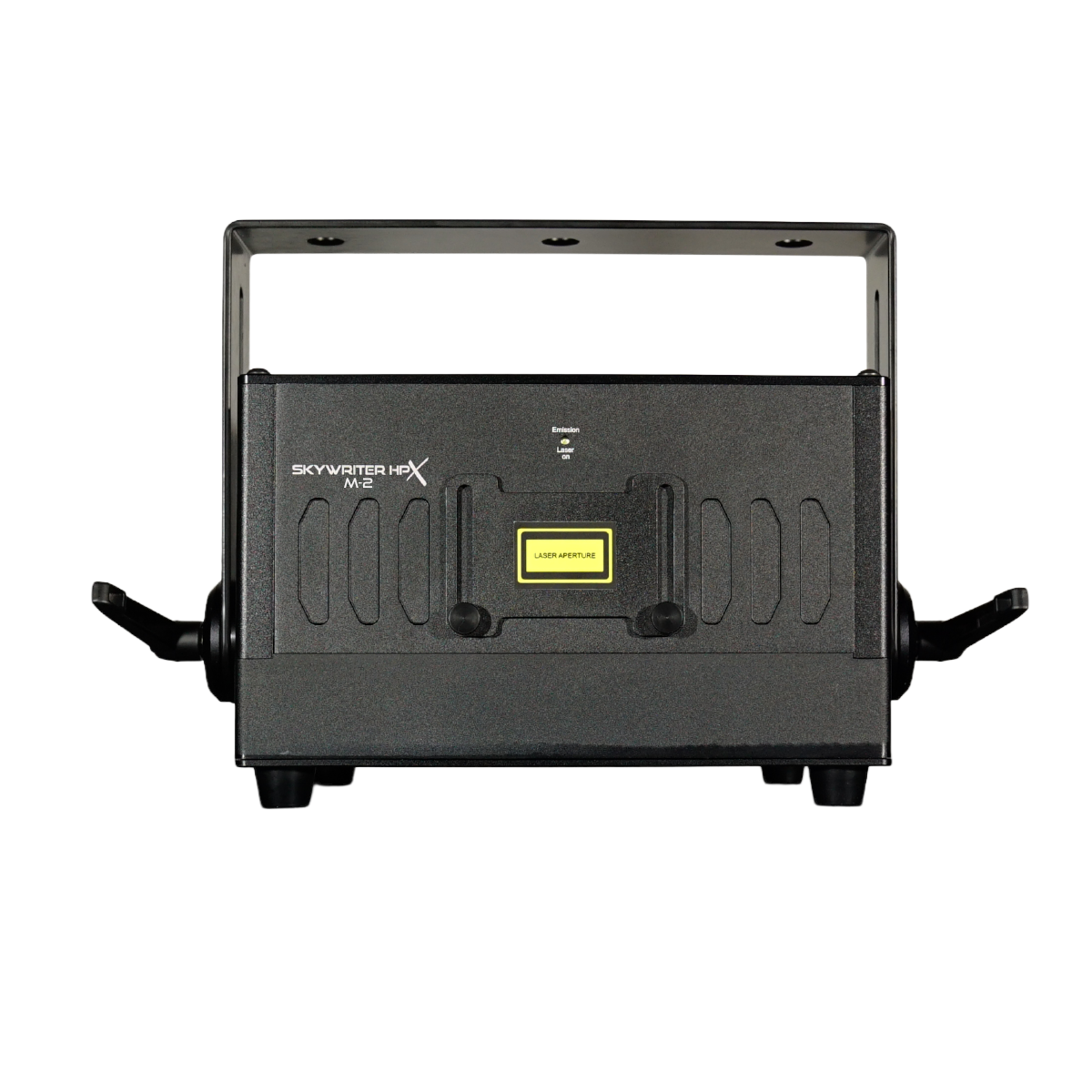

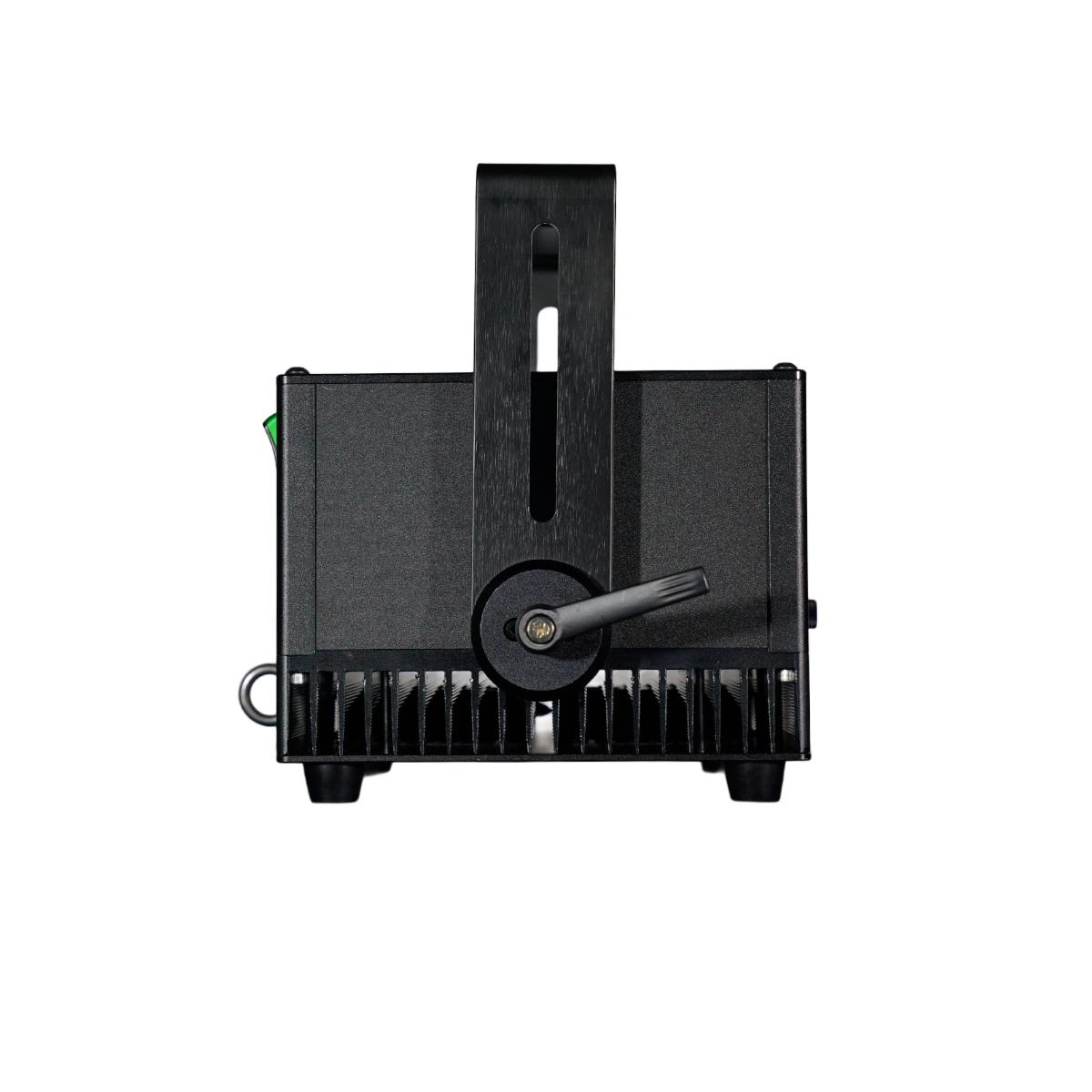

Skywriter HPX M-2

Skywriter HPX M-2
Sale price$2,499.00
Features
Direct compatibility with lighting consoles
Professional, precision graphics
Road ready, road rugged
Specifications
- Source
- 2W Balanced RGB Laser Engine
- Direct-Injection Diode Modules
- Red: 638 nm
- Green: 520 nm
- Blue: 450 nm
- 600mW red, 700mW green, 800mW blue
- Photometrics / Optics
- High-Speed Closed-Loop Galvanometers
- Max Scan Angle 45º
- 40,000 PPS Scanner Speed at 8º Scan Angle
- Beam Divergence: <1.4 mRad
- Fully Sealed Optical Deck
- Electrical / Thermal
- 90-246V AC Auto-Switching
- Power draw: 100W peak
- Neutrik PowerCON TRUE1
- Operating range: 30º F to 105º F (-1º C to 41º C)
- Other
- FDA / IEC Hazard Class IV
- U.S. FDA Variance Required

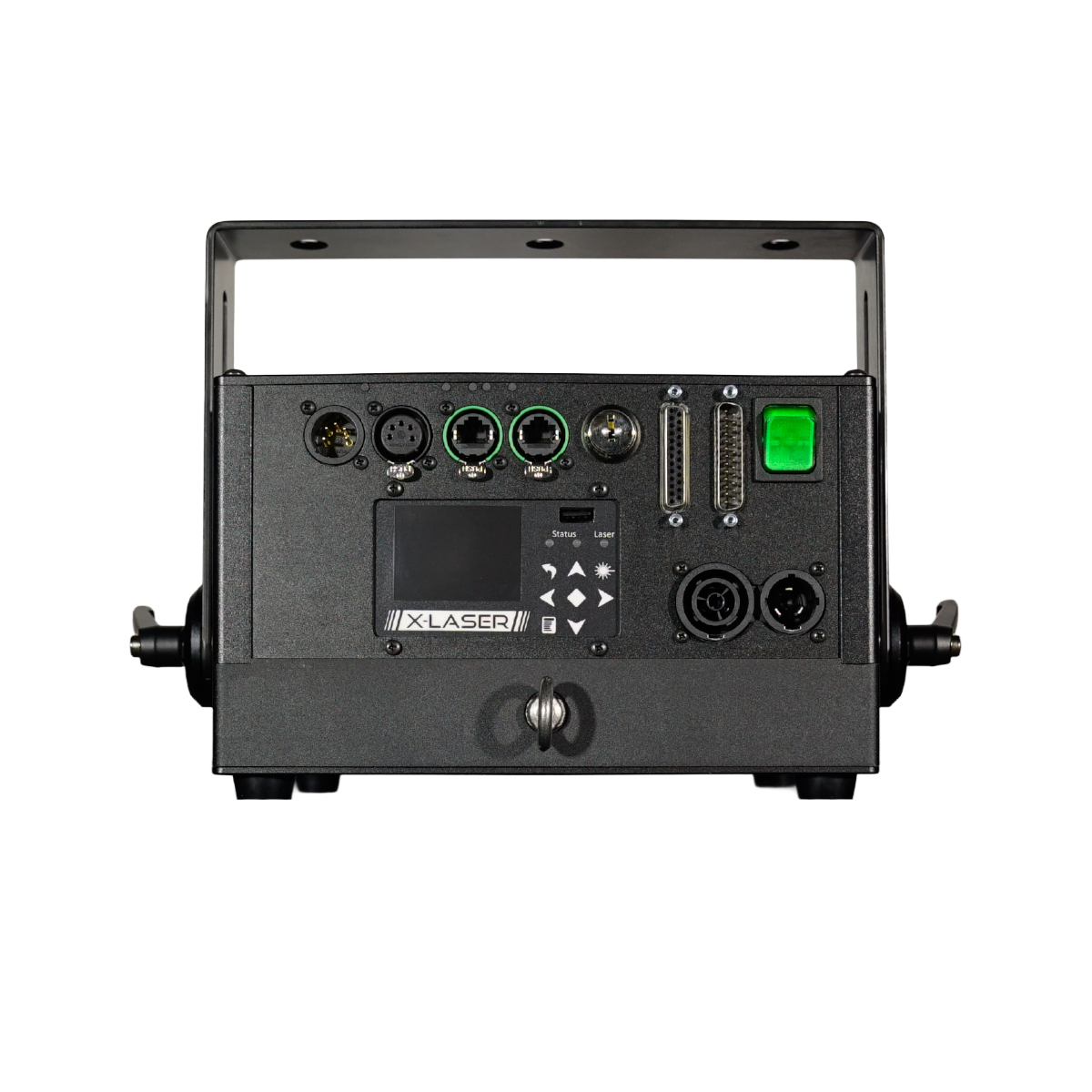

- Control and Interface
- X-Laser Mercury integrated, 2.25" LCD
- Fixture profiles for all major console brands
- EtherStop combined remote stop and control data in / thru
- ILDA in / thru
- PowerCON TRUE1 in / thru
- 5-pin DMX in / thru
- Color and Effects
- Additive RGB Analog Color Mixing
- 1,000+ Colors
- 50 Color Macros
- 11 Digital Prisms
- 450+ “Gobos” / Digital Patterns Built-In
- 60 Motion Macros with variable speed and amplitude
- Dimensions / Physical / Materials
- 7.9” L x 9.7” W x 6.6” H (9.7” H w/ yoke up)
- (200 mm x 246 mm x 167 mm; 246 mm yoke up)
- Weight: 11 lbs (5 kg)
- Rugged 6061 Aluminum Enclosure
- IP Rating: IP53
Downloads
| Filename | Document type | File type |
|---|---|---|
| Mercury Profile - ChamSys | Fixture Profile | ZIP |
| Mercury Showfile Sample - Onyx | Demo Showfile | ONYXSHOW |
| Mercury Profile - Obsidian Onyx | Fixture Profile | EXE |
| Mercury Profile - grand MA 3/GDTF | Fixture Profile | GDTF |
| Mercury Profile - grand MA 2 | Fixture Profile | ZIP |
| Mercury Profile - Avolites | Fixture Profile | ZIP |
| Mercury | Software | ZIP |
| Skywriter HPX Mercury Manual | User Manual | |
| X-Laser Skywriter HPX M-2 Specifications | Specification Sheet | |
| Mercury Profile - Martin Lightjockey | Fixture Profile | ZIP |
| Mercury Profile - ETC Eos | Fixture Profile | ZIP |
| Mercury Profile - Chroma-Q Vista 3 | Fixture Profile | ZIP |
| Mercury Profile - ADJ MyDMX | Fixture Profile | ZIP |
| Mercury Profile - Elation CompuShow | Fixture Profile | ZIP |
| Mercury Profile - Hog4 | Fixture Profile | ZIP |
| XLERATE | Software | ZIP |
| EtherStop quick setup guide | User Guide |
