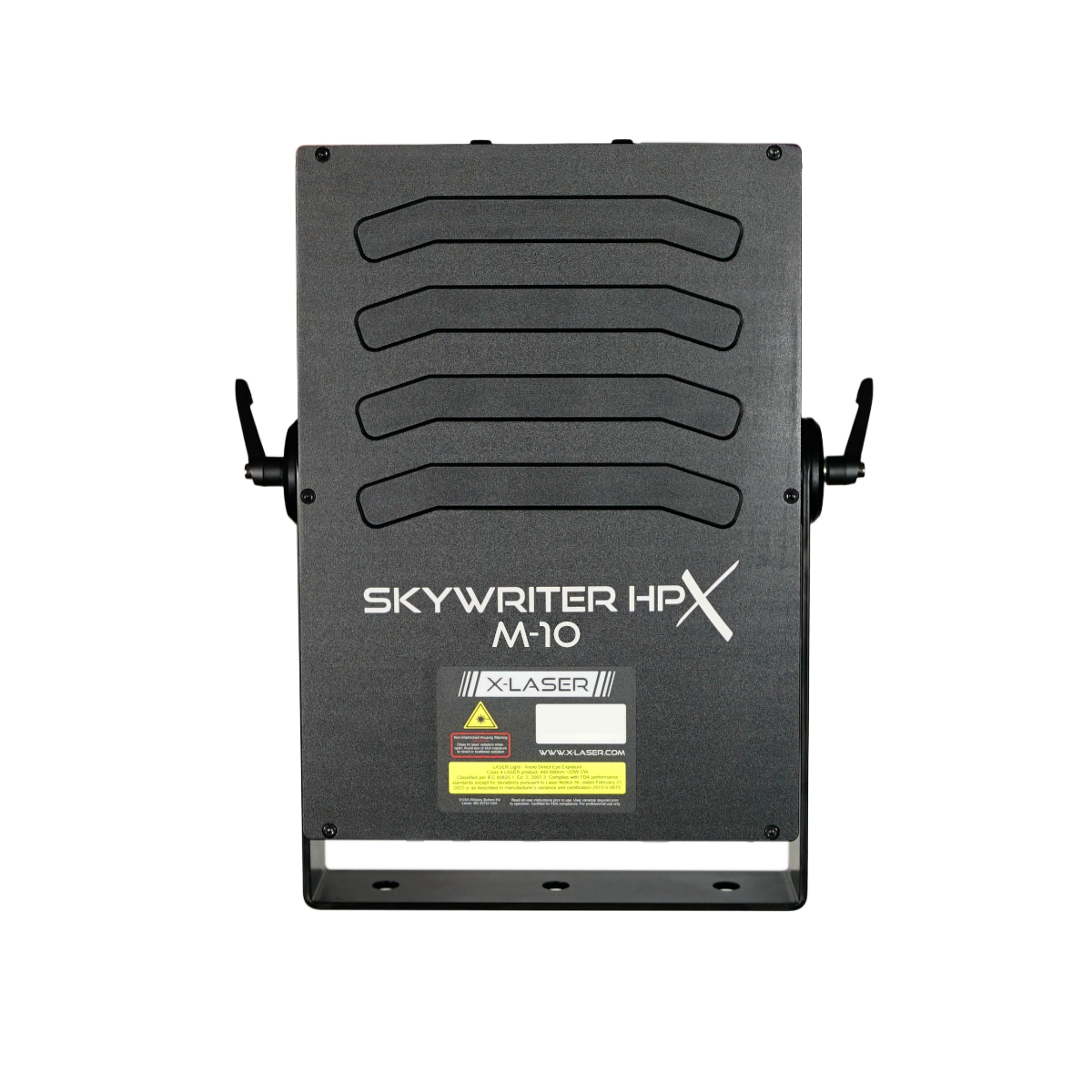

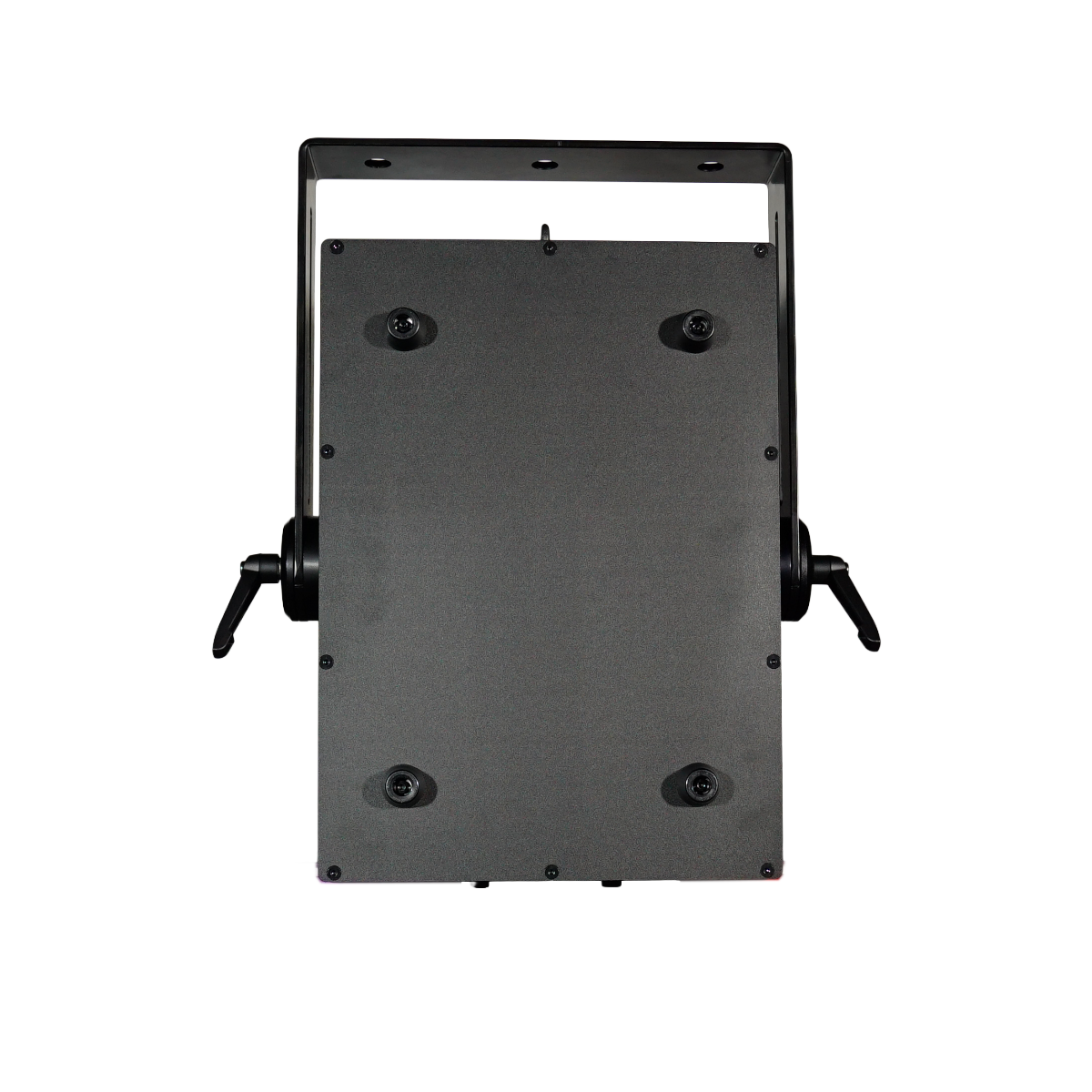

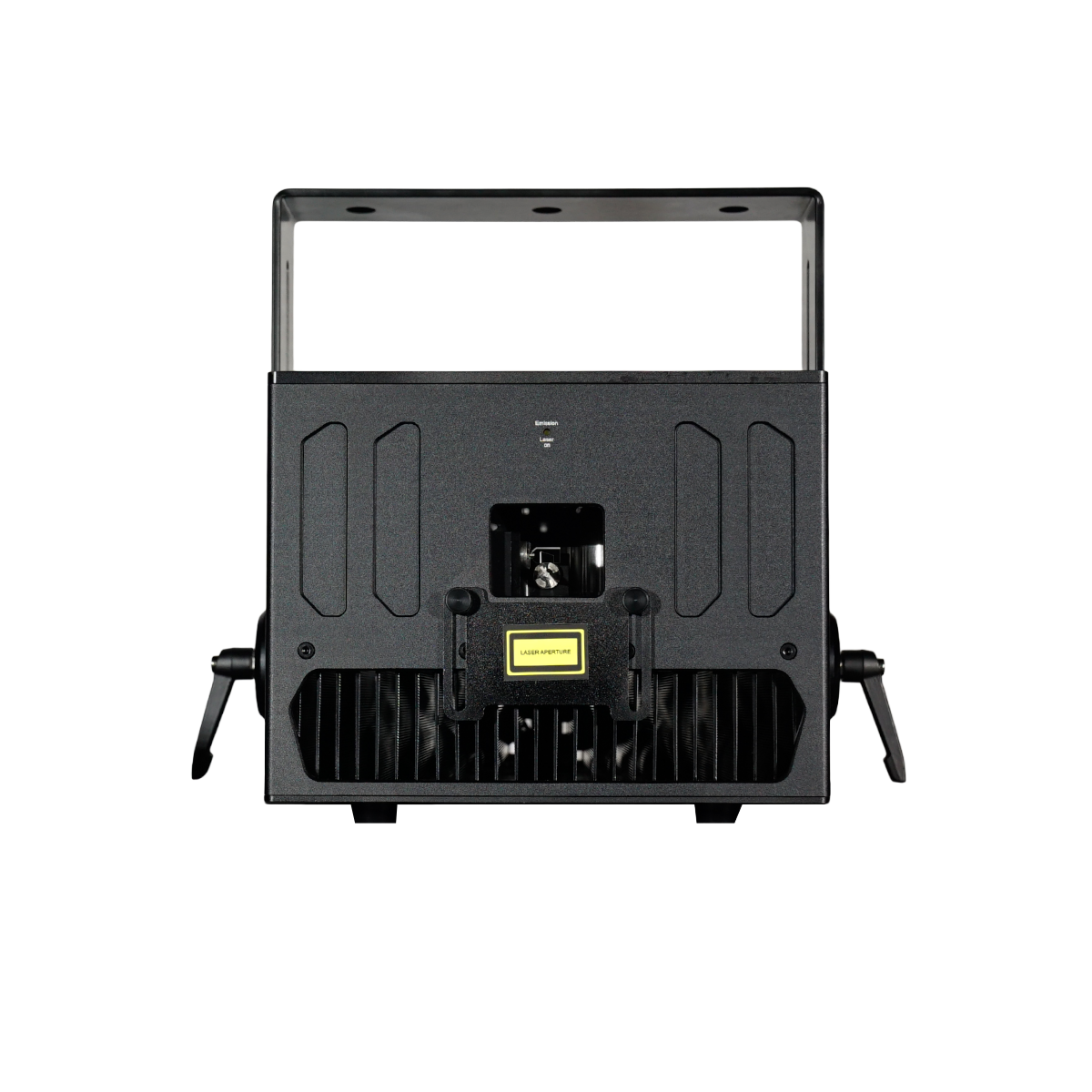

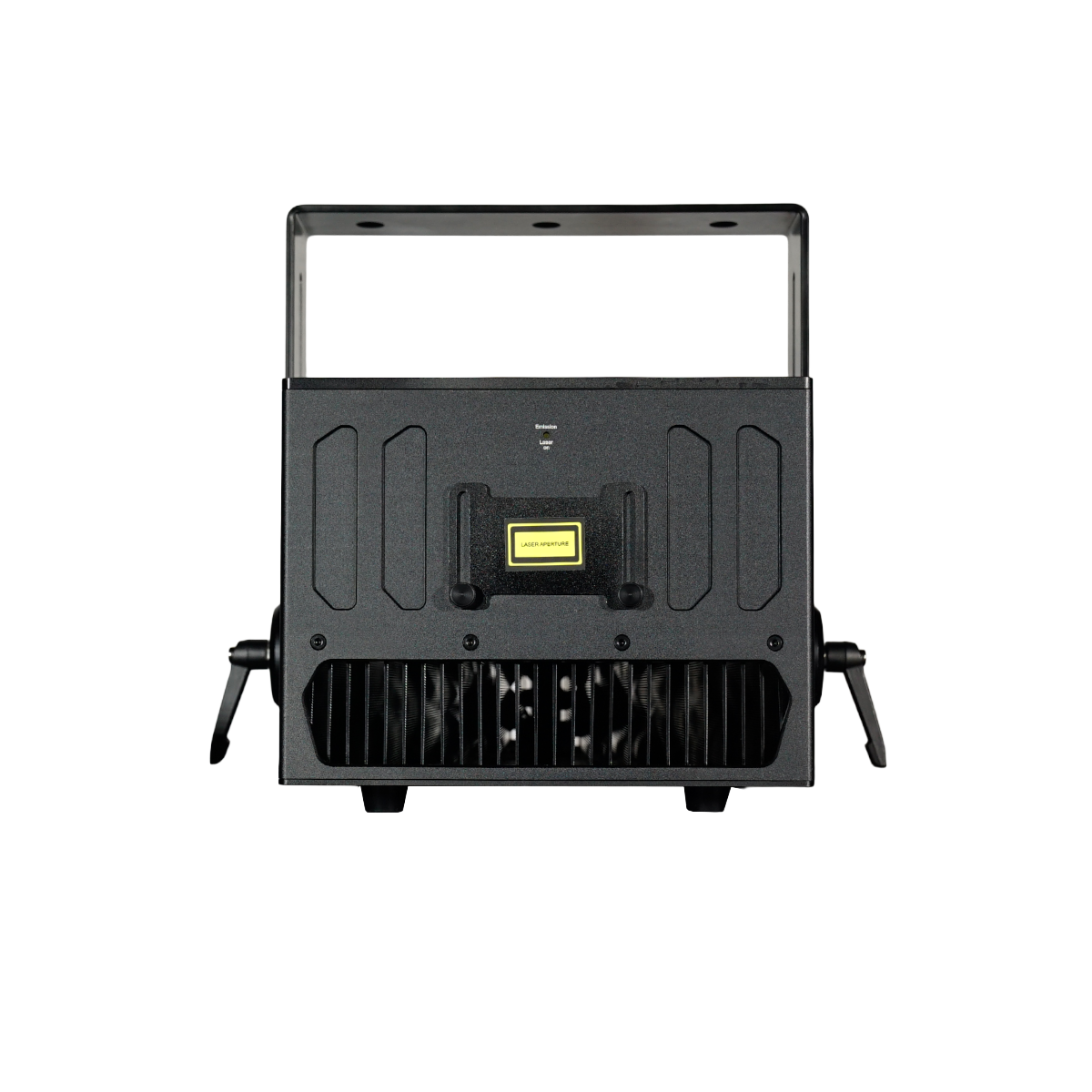

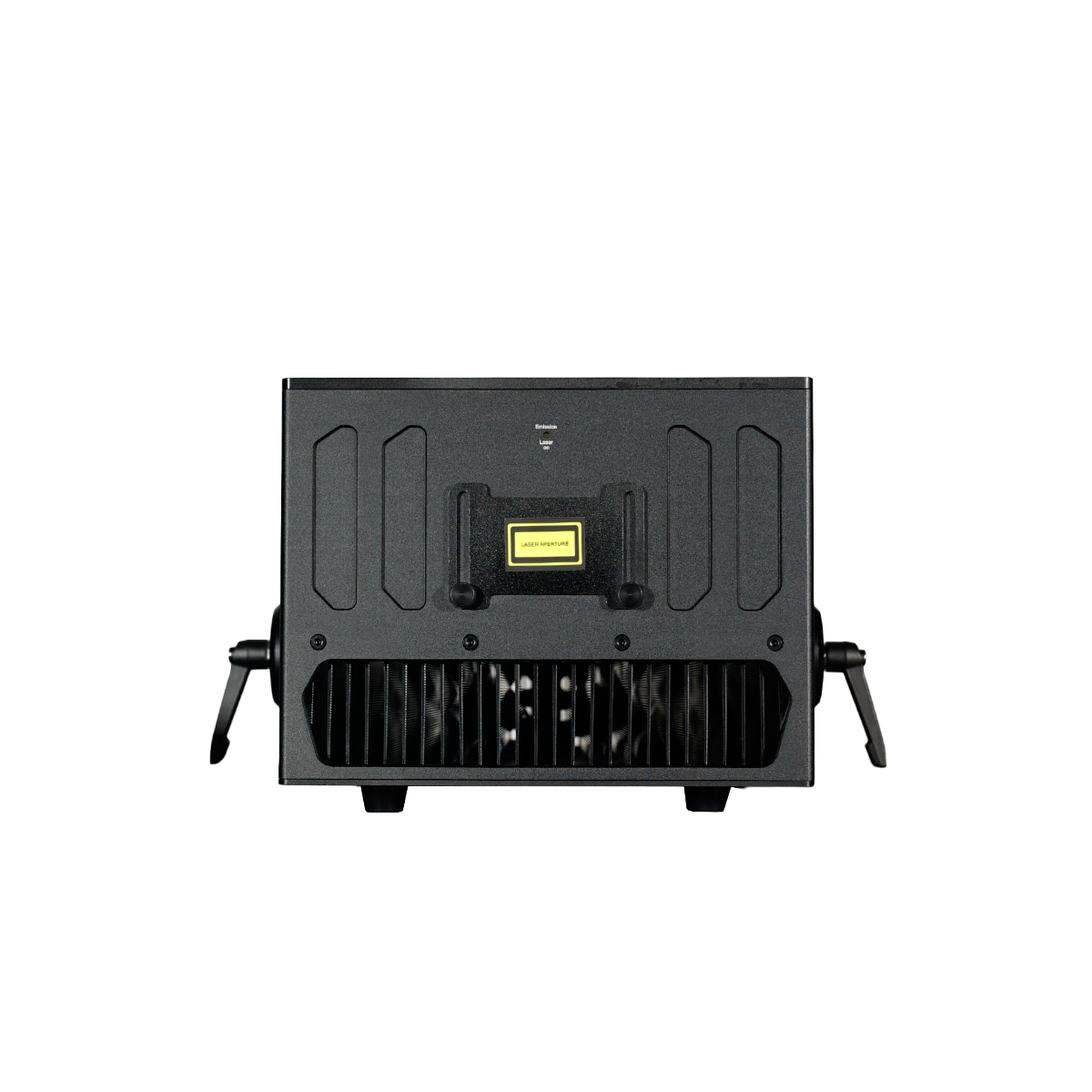

Skywriter HPX M-10
Features
Direct compatibility with lighting consoles
With X-Laser’s Mercury Laser Control System, this projector functions just like any other moving-head fixture when connected to a pro console.
Road ready, road rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.
Big power, big value
Skywriter series projectors produce mind-blowing effects at a value that makes them accessible for venues, production companies and rental houses of all sizes.
Designed to bring professional-grade laser effects to venues of various sizes, the Skywriter HPX M-10 packs 10 watts of balanced RGB power into a robust fixture built for demanding production environments. It’s fully integrated with X-Laser’s Mercury control system, enabling seamless use with lighting consoles via 5-pin DMX, Art-Net, or sACN.
Whether creating elaborate beam effects or liquid-skies, the internal effect engine provides access to over 450 gobos, 11 digital prisms, 50 color macros, and 60 motion macros — all tunable for speed and amplitude for maximum creative flexibility.
A rugged, sealed optical deck protects against dust, wind, and moisture, while several external fans and extensive heat sinking keep the diodes operating efficiently.
This fixture easily produces more than 1,000 analog colors, giving designers expressive control over their visuals. Every unit undergoes a 26-point quality inspection before leaving our shop, and it’s backed by X-Laser’s no-hassle 2-year warranty.
Perfect for touring companies, rental houses, and high-production events, the Skywriter HPX M-10 delivers premium laser effects in an accessible package—all at a strong value.
Specifications
- Source
- 10W Balanced RGB Laser Engine
- Direct-Injection Diode Modules
- Red: 638 nm
- Green: 520 nm
- Blue: 450 nm
- 3.2W red, 3.2W green, 4.0W blue
- Photometrics / Optics
- High-Speed Closed-Loop Galvanometers
- Max Scan Angle 45º
- 30,000 PPS Scanner Speed at 8º Scan Angle
- Beam Divergence: <1.2 mRad
- Fully Sealed Optical Deck
- Electrical / Thermal
- 90-246V AC Auto-Switching
- Power draw: 300W peak
- Neutrik PowerCON TRUE1
- Operating range: 30º F to 105º F (-1º C to 41º C)
- Other
- FDA / IEC Hazard Class IV
- U.S. FDA Variance Required

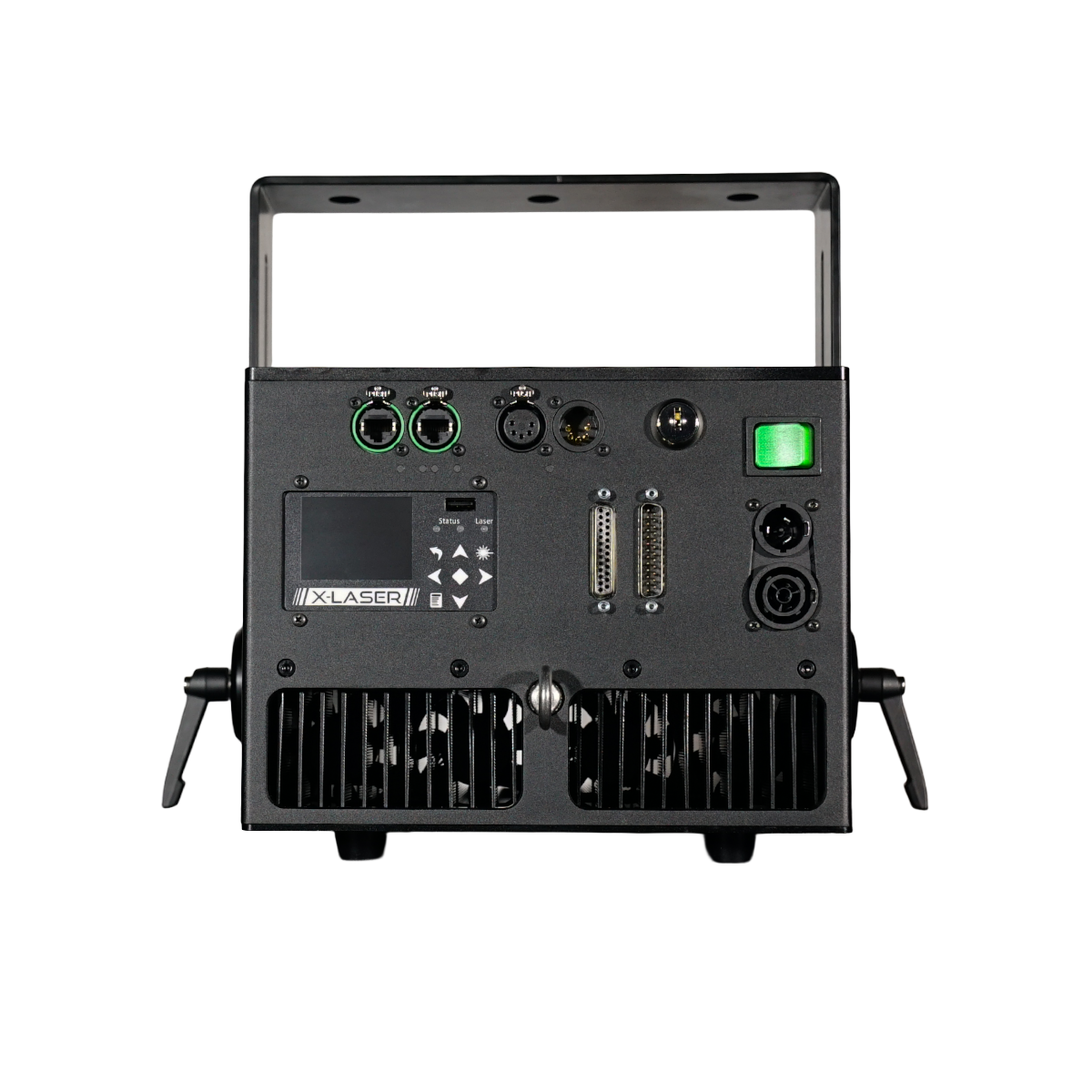

- Control and Interface
- X-Laser Mercury integrated, 2.25" LCD
- Fixture profiles for all major console brands
- EtherStop combined remote stop and control data in / thru
- ILDA in / thru
- PowerCON TRUE1 in / thru
- 5-pin DMX in / thru
- Color and Effects
- Additive RGB Analog Color Mixing
- 1,000+ Colors
- 50 Color Macros
- 11 Digital Prisms
- 450+ “Gobos” / Digital Patterns Built-In
- 60 Motion Macros with variable speed and amplitude
- Dimensions / Physical / Materials

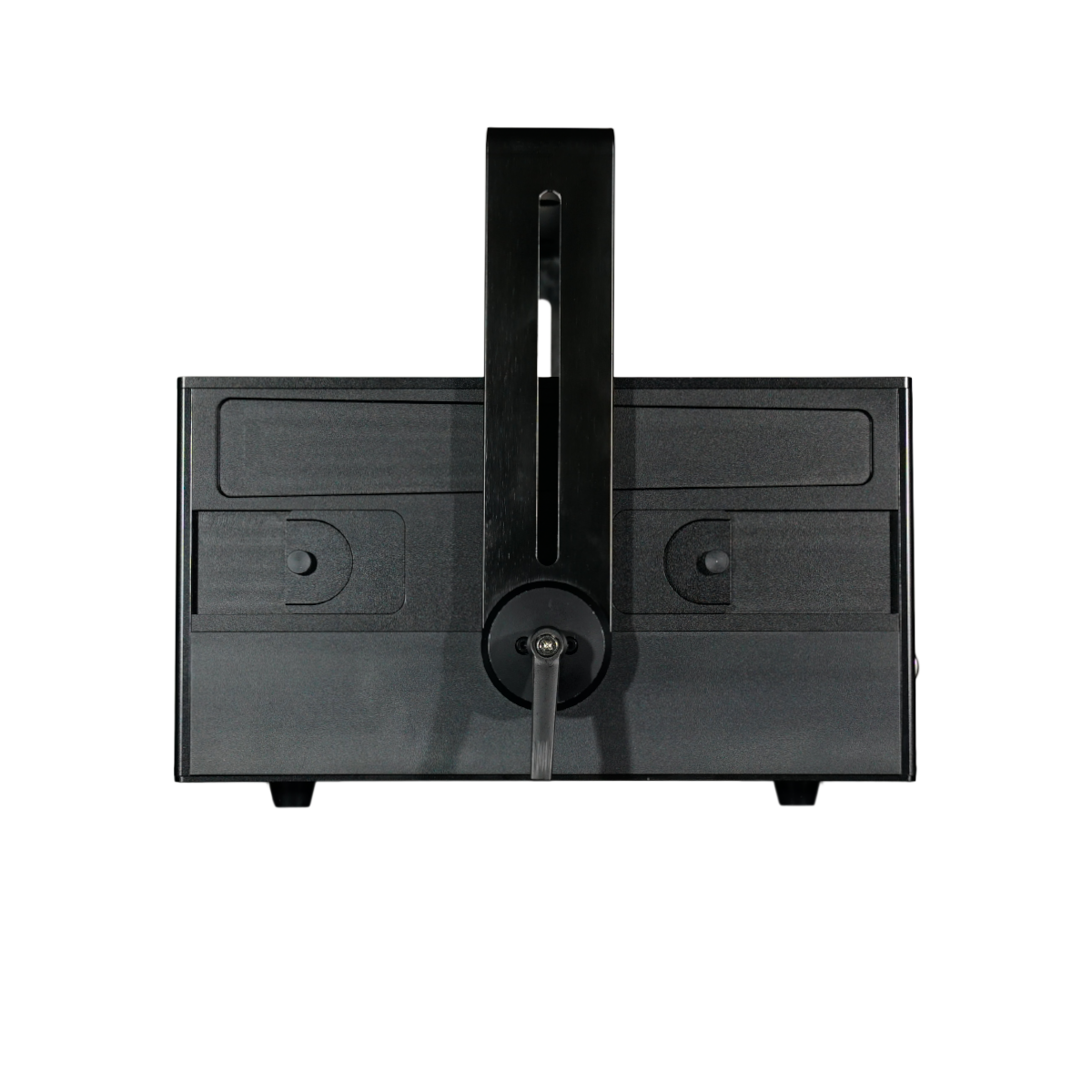

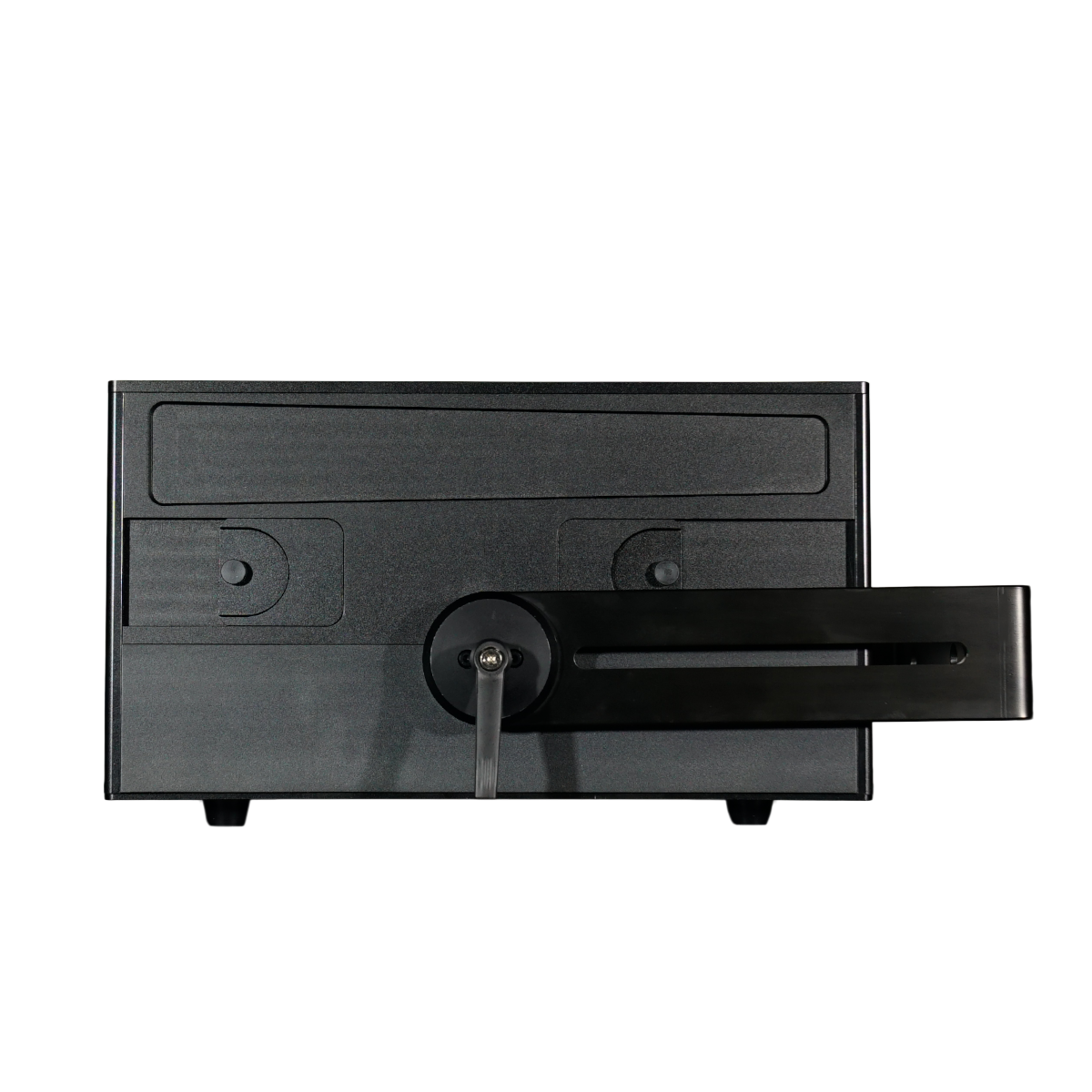

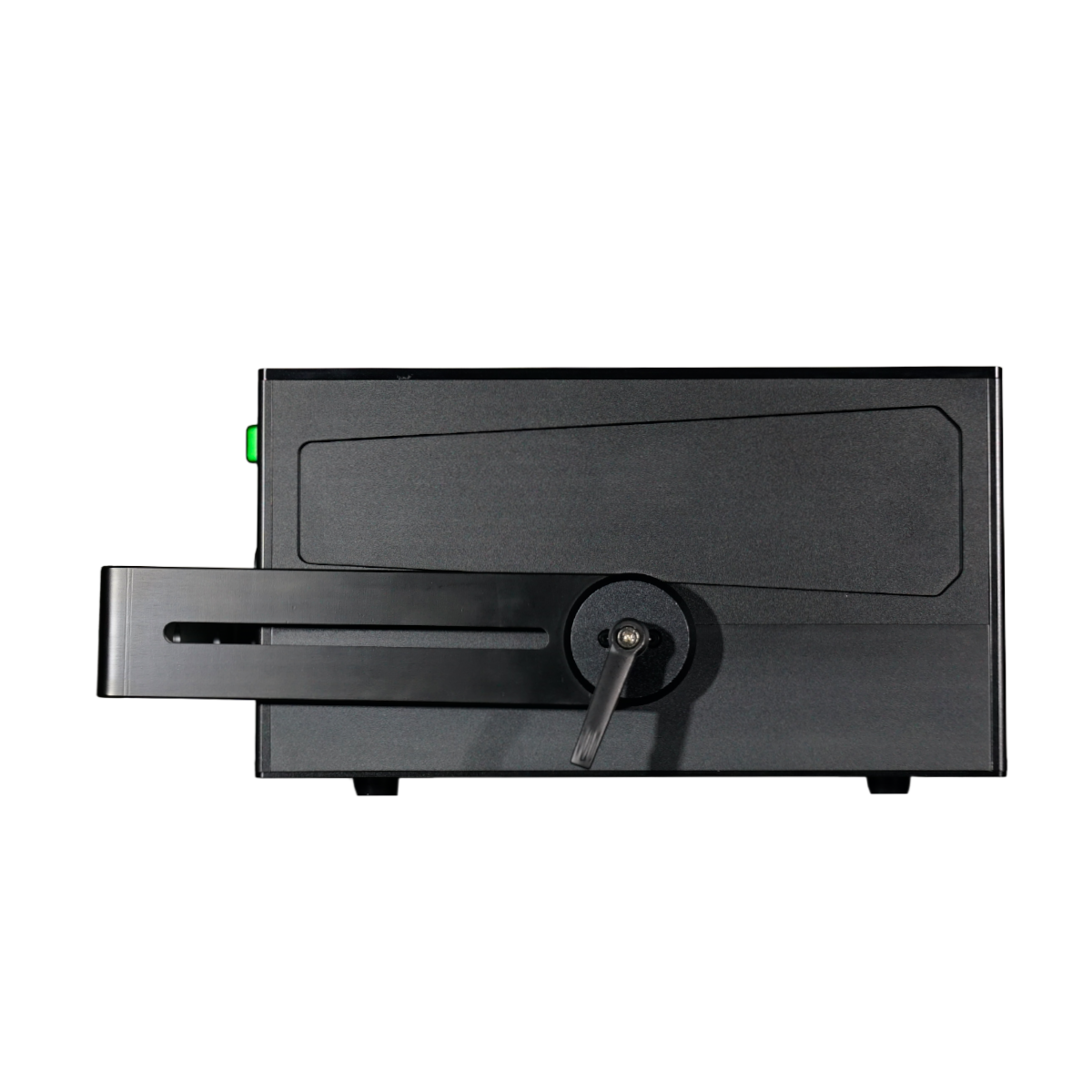

- 14.0” L x 13.4” W x 7.7” H (12.4” H w/ yoke up)
- (355 mm x 340 mm x 195 mm; 314 mm yoke up)
- Weight: 21 lbs (9.5 kg)
- Rugged 6061 Aluminum Enclosure
- IP Rating: IP53
Downloads
| Filename | Document type | File type |
|---|---|---|
| X-Laser Skywriter HPX M-10 Specifications | Specification Sheet |
