Skywriter HPX M-30
Features
Direct compatibility with lighting consoles
With X-Laser’s Mercury Laser Control System, this projector functions just like any other moving-head fixture when connected to a pro console.
Road ready, road rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.
The X-Laser Skywriter HPX M-30 is designed to deliver robust brightness, control, and value for the largest audiences and venues—indoors or out. With 30W of RGB laser power, this high-performance unit produces stunning laser displays to captivate audiences and leave a lasting impression.
Integrated with X-Laser Mercury control, the Skywriter HPX M-30 works seamlessly with professional lighting consoles via DMX, sACN, or Art-Net, offering master and basic profiles for full customization. It includes over 450 gobos, 11 digital prisms, 50 color macros, and 60 motion macros with variable speed and amplitude for truly versatile visual experiences and creative control.
The system’s sealed optical deck and external cooling fans protect against dust, wind, and water, ensuring efficient operation even in challenging environments.
Ideal for touring acts, production companies, large venues, and rental houses, the Skywriter HPX M-30 combines pro-level performance with robust design and efficiency, making it an excellent choice for high-powered professional laser effects.
Specifications
- Source
- 30W Balanced RGB Laser Engine
- Direct-Injection Diode Modules
- Red: 638 nm
- Green: 520 nm
- Blue: 450 nm
- 8.5W red, 8.5W green, 12.0W blue
- Photometrics / Optics
- High-Speed Closed-Loop Galvanometers
- Max Scan Angle 45º
- 30,000 PPS Scanner Speed at 8º Scan Angle
- Beam Divergence: <1.2 mRad
- Fully Sealed Optical Deck
- Electrical / Thermal
- 90-246V AC Auto-Switching
- Power draw: 700W peak
- Neutrik PowerCON TRUE1
- Operating range: 30º F to 105º F (-1º C to 41º C)
- Other
- FDA / IEC Hazard Class IV
- U.S. FDA Variance Required

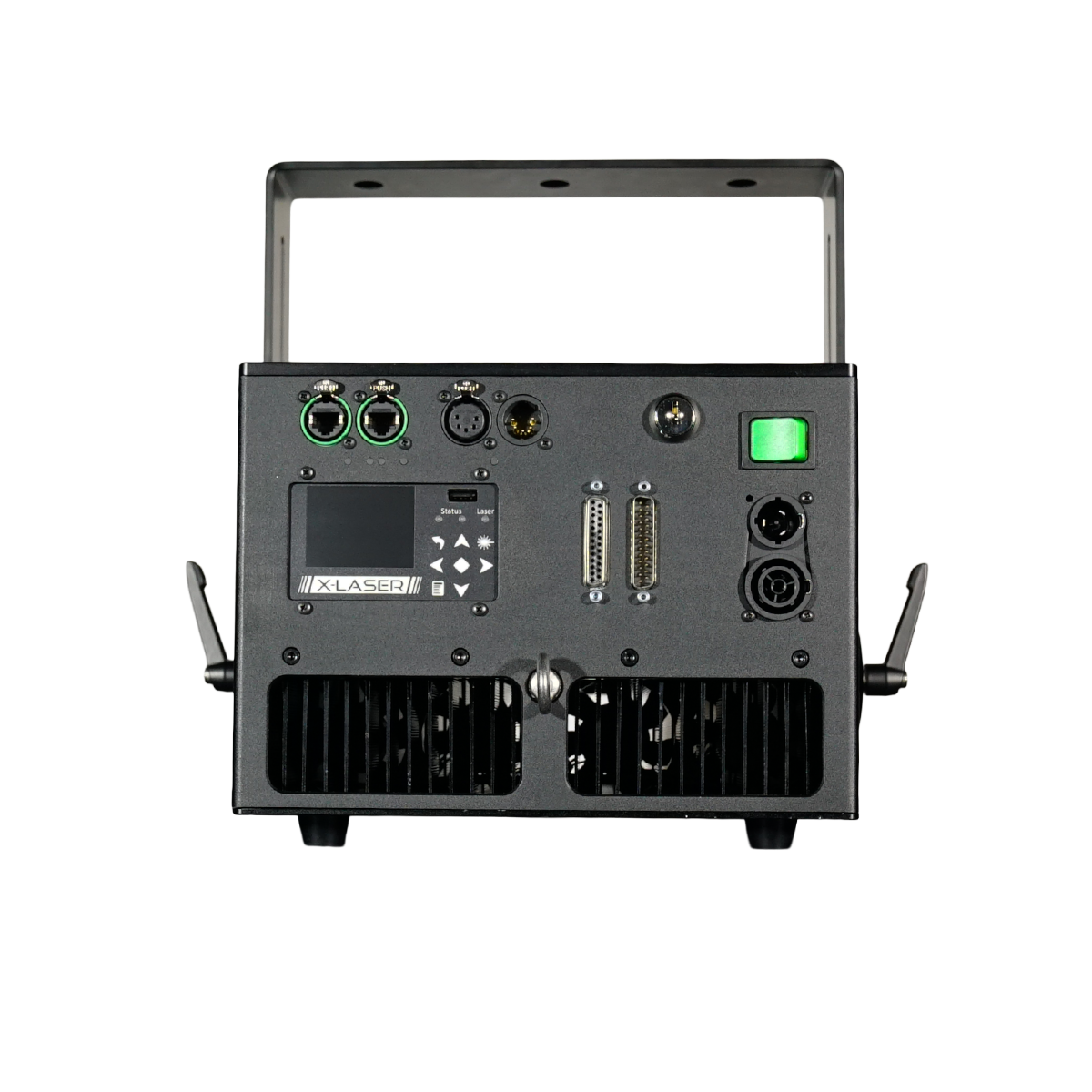

- Control and Interface
- X-Laser Mercury integrated, 2.25" LCD
- Fixture profiles for all major console brands
- EtherStop combined remote stop and control data in / thru
- ILDA in / thru
- PowerCON TRUE1 in / thru
- 5-pin DMX in / thru
- Color and Effects
- Additive RGB Analog Color Mixing
- 1,000+ Colors
- 50 Color Macros
- 11 Digital Prisms
- 450+ “Gobos” / Digital Patterns Built-In
- 60 Motion Macros with variable speed and amplitude
- Dimensions / Physical / Materials

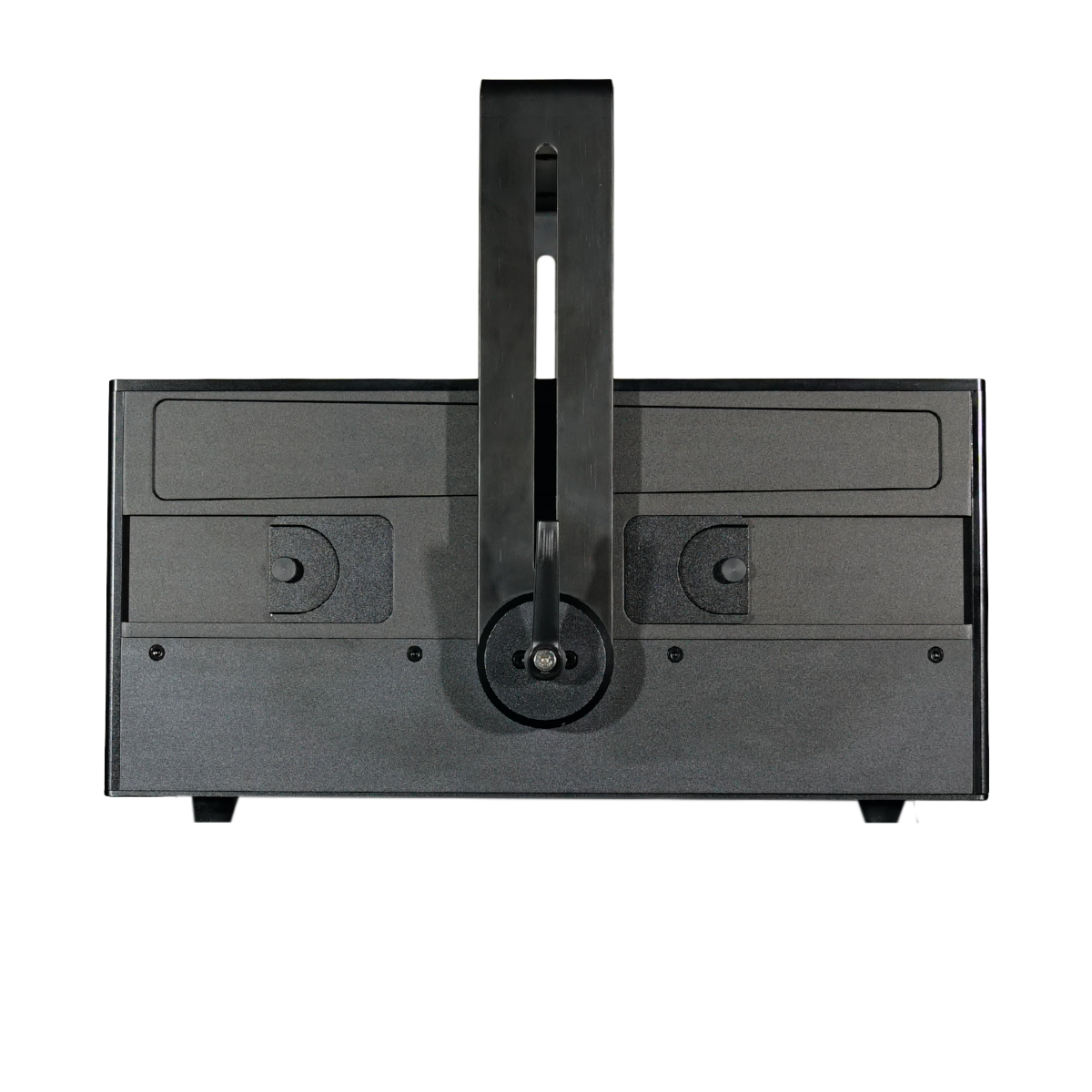

- 16.2” L x 14.0” W x 7.7” H (13.2” H w/ yoke up)
- (411 mm x 355 mm x 195 mm; 335 mm yoke up)
- Weight: 46 lbs (20.8 kg)
- Rugged 6061 Aluminum Enclosure
- IP Rating: IP53
