Aurora 4C - Quad Head, Full Color 450mW

$1,149.00

The easy-to-use Aurora 4C creates intense liquid sky and aerial beam effects while providing a safer, brighter and more cost-effective laser experience for users of any skill level.

X-Laser Aurora models are quad-aperture lasers that can captivate audiences in an entirely new way. By removing the Y-Axis, Aurora 4C users can now create stunning, vividly bright, room-filling aerial effects more easily and affordably than ever before.

Bright, vivid beams

Easily fill the room with color, whether you want to generate a bold liquid sky or a dynamic beam show, in the easiest and most affordable way possible today.

Great for beginners and pros alike

Aurora models are super easy to rig and can operate in demo mode via DMX or with your own custom 9-channel DMX programming.

Aurora lasers make aerial effects safer than ever

Aurora quad-aperture lasers cannot scan up into the sky or down into an audience, so with proper rigging, you can be totally sure of a safe performance.

Create laser shows that dominate even the biggest venues

Quad-aperture Auroras have extremely wide sweep angles, so they can fill even the largest spaces with awesome effects, especially when using multiple units.

Certified to the world’s toughest quality standards

All X-Laser projectors comply with U.S. FDA standards and with applicable IEC, UL, ETL, CSA & ROHS standards.

Specifications

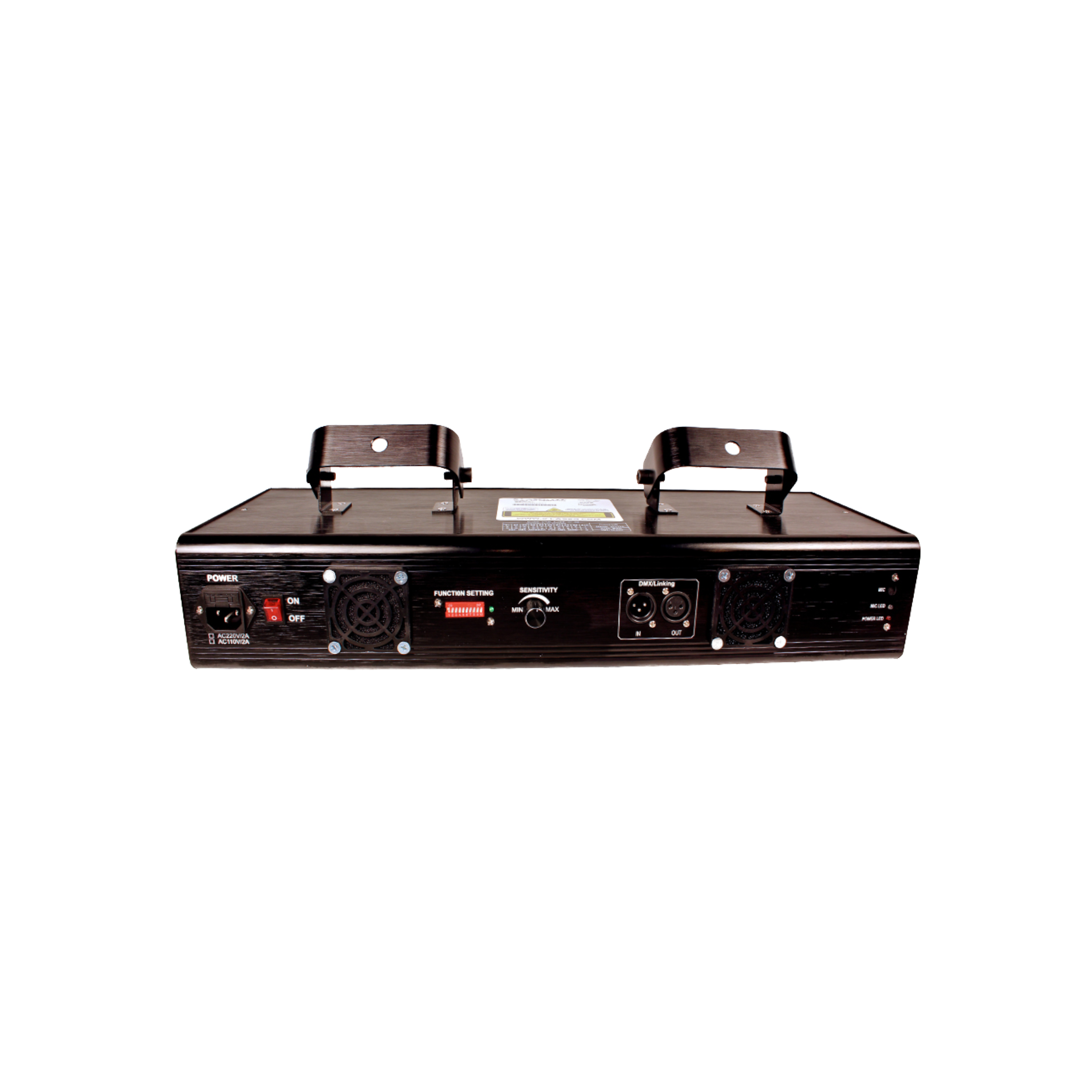

  • Control: 9-channel DMX (3-pin input and output) recommended, Demo and Sound Active modes available via DMX
  • Scanners: Open-loop micro stepper motors
  • Settings interface: DIP switches
  • Color modulation: TTL
  • Laser energy: 450mW (0.45W)
  • Wavelengths: 532nm green, 650nm red, 445nm blue
  • Physical: 21.75” x 8.5” x 6”; 9.2lbs
  • Housing type: Black anodized 6061 aluminum
  • Power draw: 40W typical, 60W peak
  • Power: 110V, 3-pin IEC, 3.0A F3AL250V fuse
  • Beam divergence: 1.5-3 mRad
  • Beam source: Direct-injection DPSS diode
  • Cooling: Filtered forced air
  • FDA/IEC hazard class: Class 3B
  • International safety: IEC 60825-1 ed. 2007
  • FDA/CDRH: 21CFR1040.10 and 1040.11(c)
  • Canadian safety: CSA C.22.2 No. 60950-1
  • EU safety: EN 60825-1, EN 60950

Downloads

Filename Document type File type
Aurora Series Manual User Manual PDF
