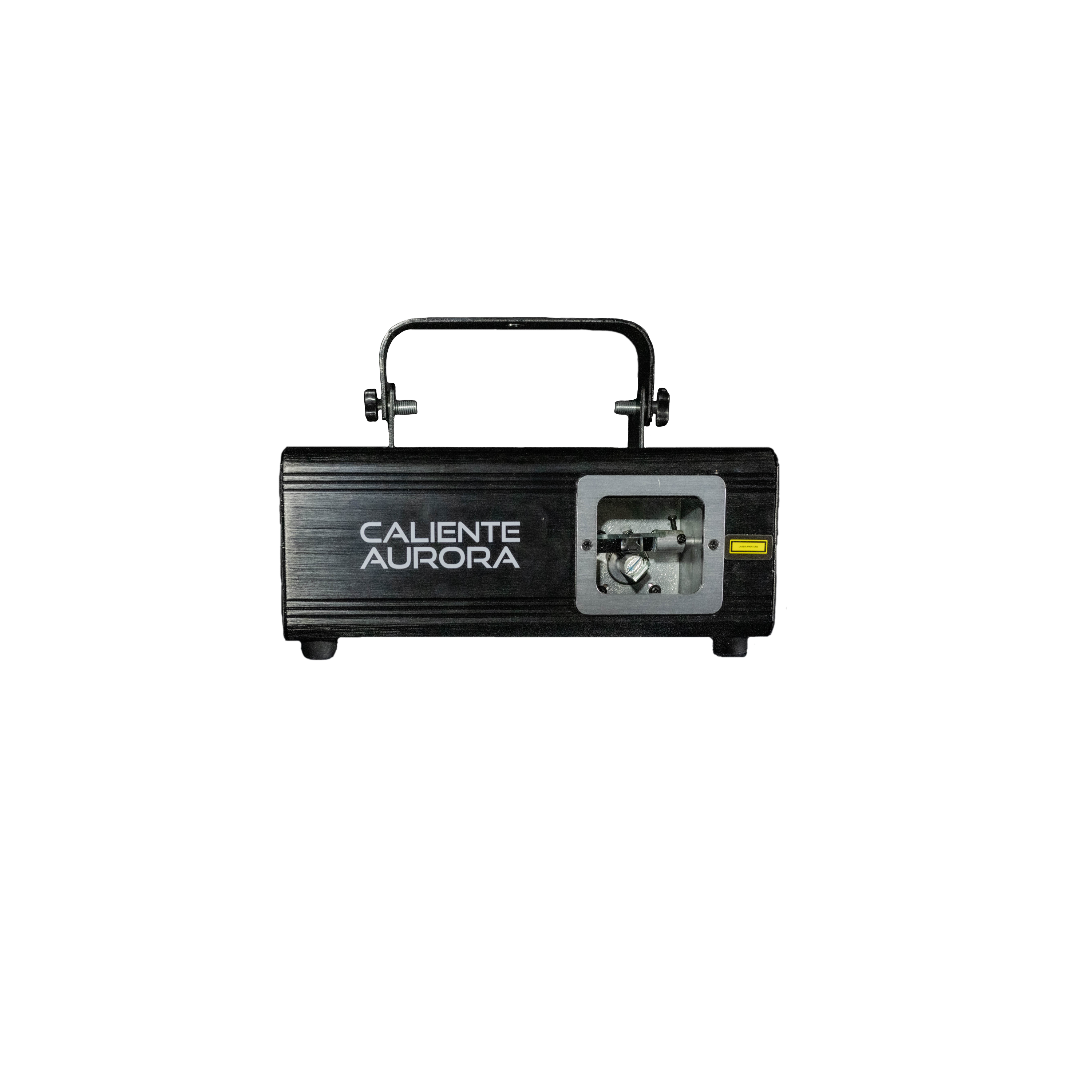

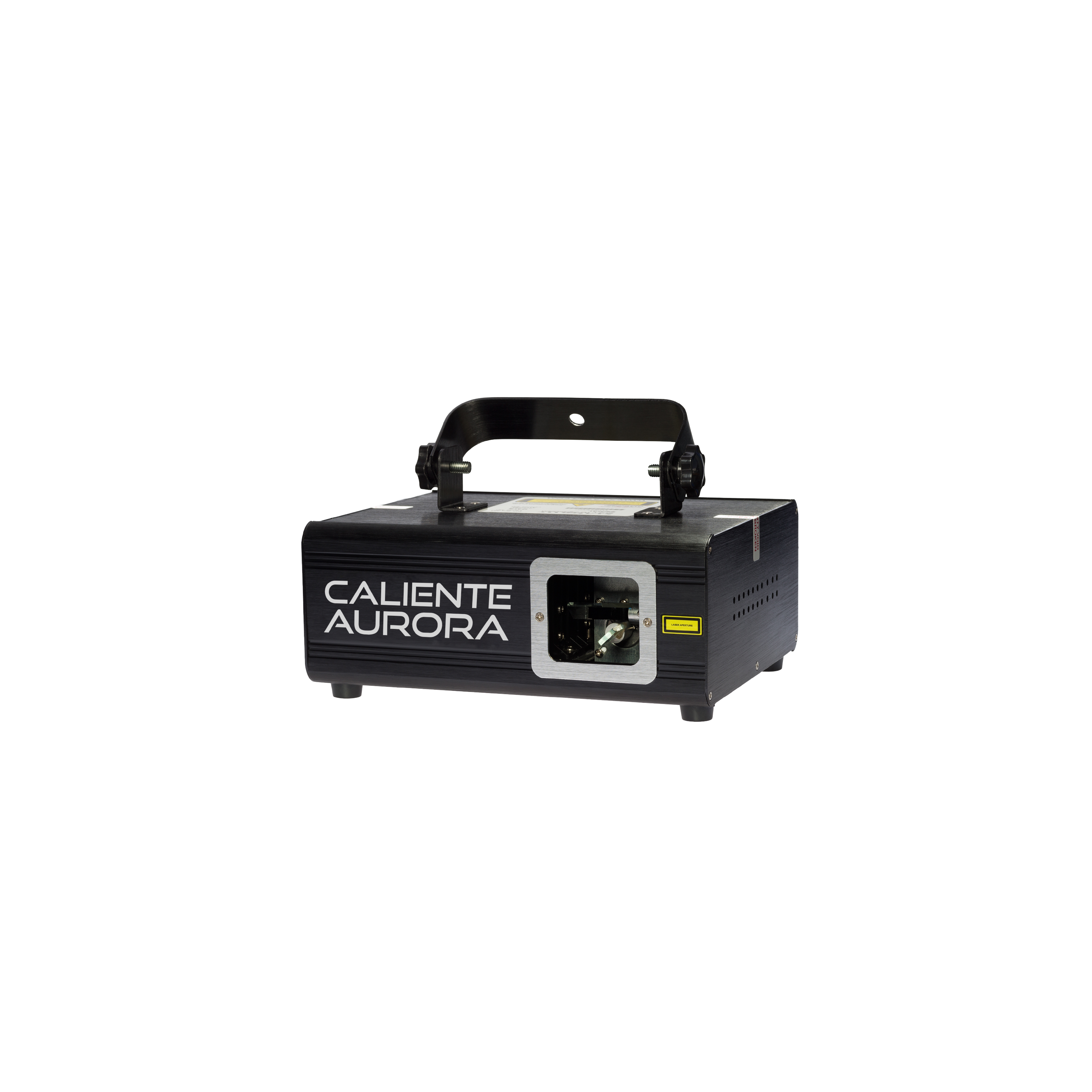

Caliente Aurora - RGB Aerial Laser System 700mW
$1,149.00

Caliente Aurora - RGB Aerial Laser System 700mW
Sale price$1,149.00
Specifications

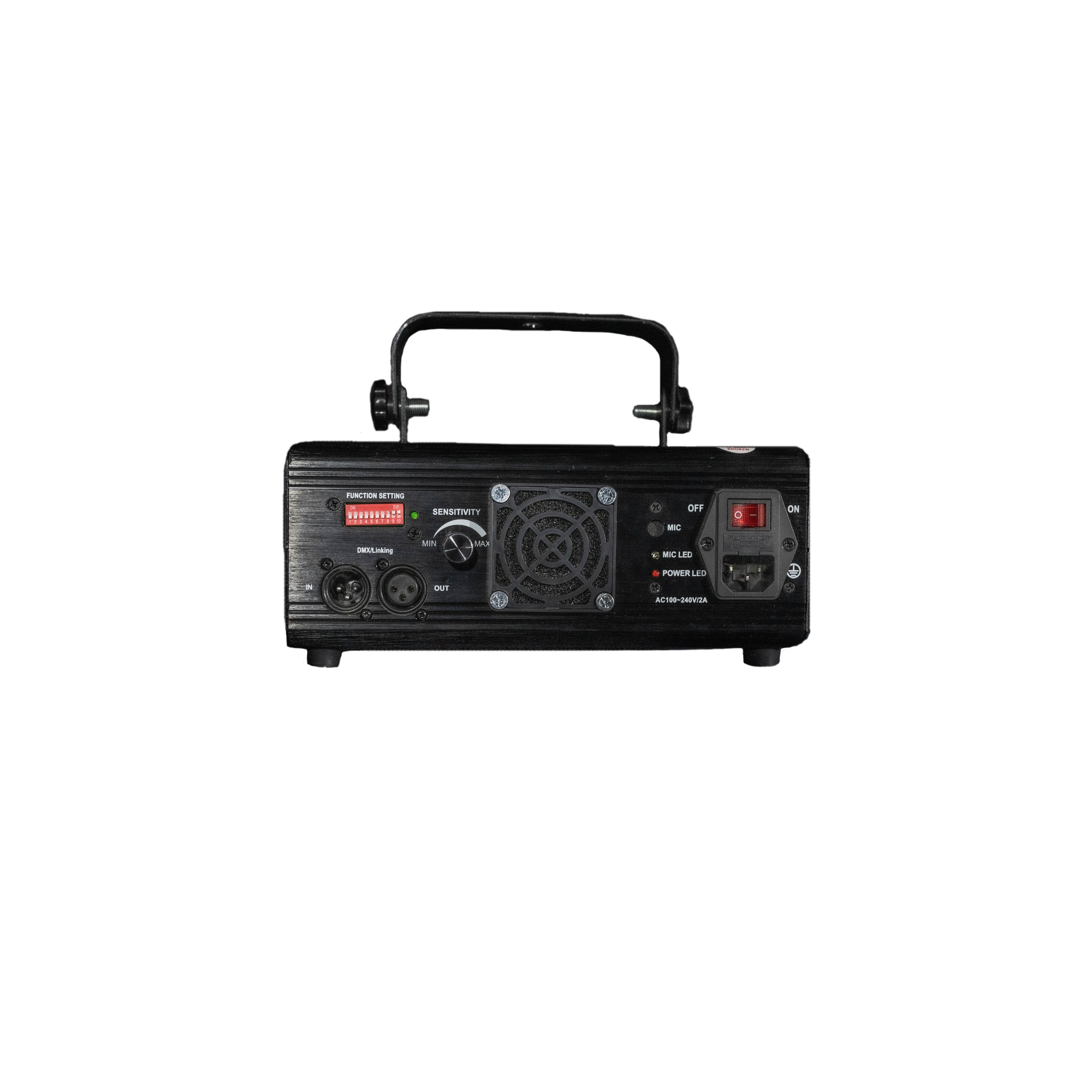

- Control: 9-channel DMX (3-pin input and output) recommended, Demo and Sound Active modes available
- Scanners: Open-loop micro stepper motors
- Settings interface: DIP switches
- Color modulation: TTL seven-color
- Laser energy: 460mW (0.46W)
- Wavelengths: 445nm blue, 532nm green, 650nm red
- Linking: DMX input and output
- Physical: 13.25” x 8.75” x 6.25”; 6.4lbs
- Housing type: Black Anodized Type II aluminum
- Power draw: 30W typical, 40W peak
- Power: 110V, 3-pin IEC, 3.0A F3AL250V fuse
- Beam divergence: 1-2.5 mRad
- Beam source: Direct-injection DPSS diode
- Cooling: Filtered forced air
- FDA/IEC hazard class: Class 3B
- International safety: IEC 60825-1 ed. 2007
- FDA/CDRH: 21CFR1040.10 and 1040.11(c)
- Canadian safety: CSA C.22.2 No. 60950-1
- EU safety: EN 60825-1, EN 60950
Downloads
| Filename | Document type | File type |
|---|---|---|
| Aurora Series Manual | User Manual | |
| DMX DIP switch addressing guide | User Guide |
